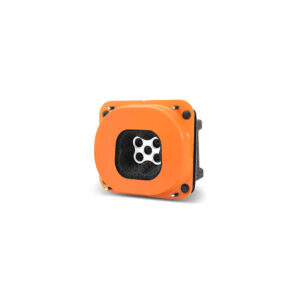

Wingtra MicaSense RedEdge-MX Payload Kit (Gen 2)

$6,300.00

The RedEdge-MX is a professional, rugged multispectral sensor for advanced aerial mapping applications like agriculture, forestry or environmental research.

Request a Quote

Name(Required)

Wingtra MicaSense RedEdge-MX Payload Kit

The RedEdge-MX is a professional, rugged multispectral sensor for advanced aerial mapping applications like agriculture, forestry or environmental research.

The industry standard multispectral sensor

The RedEdge-MX full-spectrum camera lets you capture distortion-free RGB, NDVI, and advanced vegetation index layers in a single flight.

Together with high-precision PPK module, RedEdge-MX offers centimeter level accuracy.

Sensor type:
5 narrow spectral bands (Blue, green, red, red edge, near infrared (NIR))

Lowest GSD:
6.7 cm/px

Coverage at lowest GSD:
120 ha at 98 m altitude

Horizontal field of view:
47.2° deg

Absolute horizontal accuracy down to:
8 cm** Without GCPs

Coverage at 120m:
150 ha* at 8.2 cm/px GSD

* at 70% side overlap
* Horizontal absolute accuracy (RMS). Achievable with a WingtraOne GEN II and its built-in GNSS PPK module. This level of accuracy is achievable under optimal conditions, on hard surfaces, using a well-established base station or data from CORS network. A minimum of three ground points should be used as checkpoints to verify and prove the accuracy of the project.

Technical specifications
Technical specification: 5 multispectral sensors (R, G, B, RE, NIR), 5.5 mm lens, nadir configuration
Payload weight (incl. mount): 380 g (0.84 lb)

Lowest possible GSD:
6.7 cm/px
2.6 in/px

Maximum coverage at lowest GSD:
Up to 140 ha (350 ac) at
98 m (321 ft) flight altitude

Maximum coverage at 120 m (400 ft):
Up to 170 ha (430 ac) at
8.2 cm (3.2 in) GSD

Horizontal absolute accuracy (RMS) with PPK (w/o GCPs):
down to 8 cm (3.1 in)

Vertical absolute accuracy (RMS) with PPK (w/o GCPs):
down to 15 cm (5.9 in)

Sensor type: 5 individual sensors: Red, Green, Blue, Rededge, Near-infrared
Sensor size x: 4.8 mm (0.19 in)
Sensor size y: 3.6 mm (0.14 in)
Mega pixel: 5 x 1.22
Shutter type: Electronic shutter
Pixel in x: 1280
Pixel in y: 960
Focal length of lens: 5.5 mm (0.22 in)
Focal length (35mm equivalent): 40 mm (1.57 in)
Vertical field of view: 36.2°
Horizontal field of view: 47.1°
Minimal trigger time: 1 s
Minimal trigger distance 16 m (52 ft)

GSD Overview
GSD at 120 m flight altitude: 8.2 cm/px (3.22 in/px)
Flight altitude: 120 m (400 ft)
Maximum frontal overlap: 80%
Maximum coverage: 150 ha (380 ac)
Lowest possible GSD: 6.7 cm/px (2.62 in/px)
Flight altitude: 98 m (320 ft)
Maximum frontal overlap: 75%
Maximum coverage: 120 ha (300 ac)
8.0 cm/px GSD: 8 cm/px (3.15 in/px)
Flight altitude: 117 m (380 ft)
Maximum frontal overlap: 79%
Maximum coverage: 150 ha (380 ac)
Highest possible GSD: 50 cm/px (19.69 in/px)
Flight altitude: 733 m (2410 ft)
Maximum frontal overlap: 95%
Maximum coverage: 850 ha (2110 ac)

Weight 3.5 lbs
Dimensions 39 × 29 × 28 in
