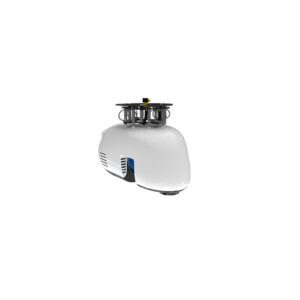

Microdrones mdLiDAR1000HR Payload High Left
Microdrones mdLiDAR1000HR Payload High Front
Microdrones mdLiDAR1000HR Payload High Back
Microdrones mdLiDAR1000HR Main

Microdrones Payload mdLiDAR1000HR

$21,500.00

mdLiDAR1000HR is a fully integrated system for producing 3D point clouds optimized for land surveying, construction, oil & gas and mining applications.

Request a Quote

Name(Required)

Fully Integrated LiDAR & Camera Payload x 1
Applanix APX-15 UAV DG

PROVEN INDUSTRY LEADING DRONE LiDAR SURVEY EQUIPMENT AND SOFTWARE.
HR means high resolution pointclouds and increased coverage is made easier and more accessible than ever. This is the UAV, hardware, software, workflow, training and support that surveying professionals need.

LiDAR + mdaaS + EASY TO USE mdInfinity SOFTWARE = EXTREME GEOSPATIAL PRODUCTIVITY, NOW IN HIGH RESOLUTION
Microdrones has developed an end-to-end LiDAR solution combining a drone, a LiDAR payload, a fully integrated LiDAR processing and photogrammetry software workflow, and world class support to consistently provide quality deliverables.

mdLiDAR1000HR is a fully integrated system for producing 3D point clouds optimized for land surveying, construction, oil & gas and mining applications.

mdLidar1000HR with a 90 degree field of view for both scanned points and imagery, repeatedly provides a precision of 1.6 cm (.052 ft) at 1-σ when flown at 40 m (130 ft) at a speed of 8 m/s (18 mph).

Improved image acquisition precisely configured to match 90 degree laser scanner field of view enables compatibility with streamlined point cloud colorization and FORMap data processing modules within the mdInfinity platform.

Each LiDAR channel of the mdLiDAR1000HR was boresight calibrated to improve the data consistency, therefore providing a reduced Standard Measurement Uncertainty.

  • Simple mission planning using mdCockpit
  • User selects flying height, drone speed and LiDAR strip overlap
  • Fully automated mission execution, realtime monitoring, and flight control using mdCockpit
  • Thorough georeferencing data processing using the Applanix APX-15 UAV DG and mdInfinity Software
  • Automated final point cloud processing using mdInfinity processing software
  • Final point cloud in standard ASPRS LAS format, View your deliverable in mdInfinity software, or export to use within any GIS or CAD software environment that you currently use.

WHO SHOULD CONSIDER THIS SYSTEM:

Professionals responsible for geospatial data collection should consider mdLiDAR1000HR to support the following tasks.

  • Digital Twin Creation and Maintenance
  • Corridor mapping
  • Mining (volume calculation)
  • Construction site monitoring
  • Environmental changes (time series)
  • Forestry
  • Contour mapping
  • Planning, Leveling, Excavation
  • Archaeology and cultural heritage
  • Highway construction
  • Precision Agriculture

SOLUTION COMPONENTS:
Platform: md4-1000

Payload:
LiDAR Sensor: Velodyne PUCK VLP-16
Camera Sensor: SONY IMX264
Georeferencing: APX-15 UAV

Software:
mdCockpit
mdInfinity

TECHNICAL SPECIFICATIONS:
Takeoff Weight (TOW): 6500g

System Operation Temperature:
-10 °C to 50 °C
14 °F to 122 °F

System Accuracy: LiDAR Pointcloud 4 cm RMSE
Photogrammetry:
Horizontal: 1 – 2 pixels
Vertical: 3 – 4 pixels

Weight 12 lbs
Dimensions 18 × 14 × 12 in
