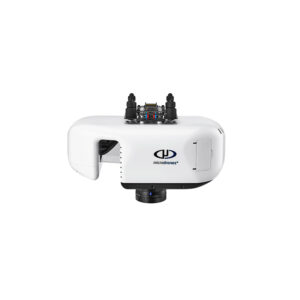

Microdrones mdLiDAR3000 V2 Payload High Right
Microdrones mdLiDAR3000 V2 Payload High Left

Microdrones mdLiDAR3000 V3

$170,000.00

mdLiDAR3000 is an end-to-end LiDAR solution combining a drone, a LiDAR payload, and a fully integrated software workflow with convenient payment plans and data processing options.

Request a Quote

Name(Required)

md4-3000 Aircraft x 1
Charger x 1
Flight Battery x 1
Carrying Case x 1
Tri-Blade Quadcopter
Integrated Cooling Covers
Mag-less Navigation
Encrypted Digital Data Link
mdRC Remote Controller x 1
Extended Communication Range Operation
Multiple Tablet Control
Fully Integrated LiDAR PAired with a Sony RX1R II Camera & Quick Connect Mount x 1
Applanix APX-20 External IMU
mdCockpit Tablet Software
Tap & Fly
FOV Side Scan

EXTREME LiDAR DATA COLLECTION, WITH THE CAPABILITY TO COLLECT VERTICAL FEATURES VIA A WIDER FIELD OF VIEW.
mdLiDAR3000 is an end-to-end LiDAR solution combining a drone, a LiDAR payload, and a fully integrated software workflow with convenient payment plans and data processing options.

VERTICAL FEATURE CONFIGURATOR

By opening the scanners FOV you can now fully utilize the area between the skids for data collection and by using the configurable field of view option, you are no longer limited to flying above your area of interest.

THE COMPLETE PACKAGE TO ADD UNMANNED AERIAL LiDAR TO YOUR GEOMATICS SERVICES

The mdLiDAR3000 uses the lifting power, resilience and efficiency of the Microdrones aircraft platform to carry a perfectly integrated Riegl miniVUX‑3UAV and a Sony RX1R II camera. The result? You can quickly acquire high density and accurate LiDAR data in the field and efficiently turn it into a 3D colorized pointcloud back at the office or on your laptop.

  • Simple mission planning and control using mdCockpit
  • User selects flying height, drone speed and LiDAR strip overlap
  • Fully automated mission execution and realtime mission monitoring using mdCockpit
  • Thorough georeferencing data processing using the dual-IMU Applanix APX-20 UAV DG and mdInfinity software
  • Automated final point cloud processing using mdLiDAR processing software
  • Final point cloud in standard ASPRS LAS format usable in any GIS or CAD software environment
  • Quick and Accurate point cloud colorization using accurate system-produced orthomosaics and a user-friendly, seamless workflow

WHO SHOLD CONSIDER THIS SYSTEM:

As you’ve come to expect, Microdrones provides you with the full solution: Plan, Fly, Process, Visualize. Only Bigger.

This is a serious machine for serious geomatics professionals in the construction, land development, engineering, surveying and research trades. It’s field tough and ready to work with you on the following tasks:

  • Digital Twin Creation and Maintenance
  • Corridor mapping
  • Mining (volume calculation)
  • Construction site monitoring
  • Environmental changes (time series)
  • Forestry
  • Contour mapping
  • Leveling/Excavation
  • Archaeology and cultural heritage
  • Highway construction

SOLUTION COMPONENTS:
Platform: md4-3000

Payload:
LiDAR Sensor: Riegl miniVUX‑3UAV
Camera: Sony RX1R II
Georeferencing: Trimble APX-20 UAV DG

Software:
mdCockpit
mdInfinity
Vertical Feature Configurator

TECHNICAL SPECIFICATIONS:
Takeoff Weight (TOW): 14823 g
System Operation Temperature: -10 °C up to 50 °C

System Accuracy: LiDAR Pointcloud
Horizontal: 1 – 3 cm
Vertical: 1 – 3 cm
Photogrammetry
Horizontal: 1 – 2 pixels
Vertical: 3 – 4 pixels

Weight 110 lbs
Dimensions 48 × 40 × 42 in
