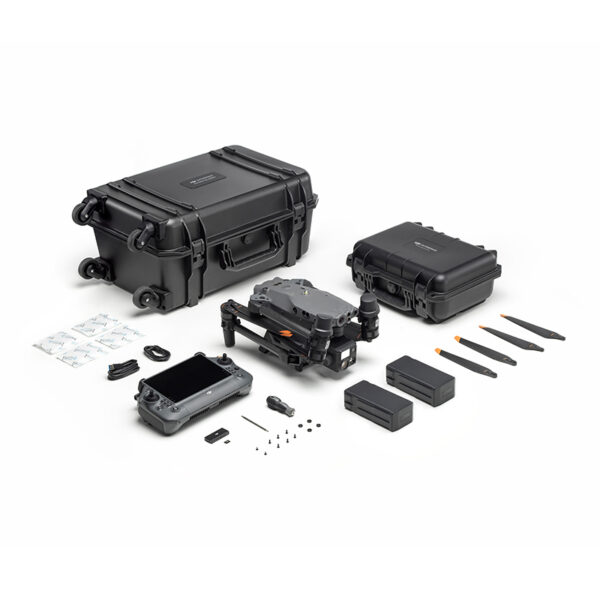

Aircraft Body × 1
DJI RC Plus Remote Controller × 1
1671 Propeller (CW) × 1
1671 Propeller (CCW) × 1
USB-C Cable × 1
USB-C to USB-C Cable × 1
Carrying Case × 1
Screws and Tools × 1
BS30 Battery station × 1
DJI Matrice 30T
$13,341.00
Power in Portability. The DJI Matrice 30 series is designed specifically for everyday heroes. The M30 and M30T combine the power of the impressive M300 with the portability of the much-loved Mavic series so you can capture the aerial data you need, when you need it.
With features including wide-angle, zoom, thermal imaging (M30T only) and a laser range finder, this drone is set to change the game in major sectors like Policing, Security, Search and Rescue, Asset Inspection and more.
- Integrated Wide, Zoom, and Infrared cameras with a Laser Rangefinder sensor
- IP55 ingress protection, and -20° C～50° C temperature operation range
- Lightweight and portable, for those who are mobile
- Remote control is tailor-made for enterprise users
- 41-Min Max. Flight Time
- Compatible with FlightHub 2 for efficient ground-to-cloud synergy
- Support remote deployment operations with DJI Dock
Wide Camera
Equivalent Focal Length: 24 mm, DFOV: 84°
12 MP 1/2” CMOS Sensor
Video Resolution: 4K/30fps
Zoom Camera
48 MP 1/2” CMOS Sensor
5×-16× Optical Zoom
200× Max. Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fps
Thermal Imaging Camera
Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%
Laser Rangefinder
Range: 3 m – 1200 m
Accuracy: ±(0.2m+D×0.15%)
Powerful Flight Performance
A balance of power and portability delivers higher operational efficiency.
Max Flight Time: 41-min
Wind Resistance: 15 m/s
Service Ceiling: 7000 m
Max Speed: 23 m/s
Environmental Adaptability
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
Aircraft
Dimensions (unfolded, excl. propellers): 470×585×215 mm (L×W×H)
Dimensions (folded): 365×215×195 mm (L×W×H)
Diagonal Wheelbase: 668 mm
Weight (incl. two batteries): 3770 ± 10 g
Max Takeoff Weight: 4000 g
Operation Frequency: 2.4000-2.4835 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) | 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Hovering Accuracy (windless or breezy): Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) | Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
RTK Positioning Accuracy (fixed RTK enabled): 1 cm+1 ppm (horizontal) | 1.5 cm+1 ppm (vertical)
Max Angular Velocity: Pitch: 150°/sec.; Yaw: 100°/sec.
Max Tilt Angle: 35° (N-mode and Forward Vision System enabled: 25°)
Max Ascent/Descent Speed: 6 m/s, 5 m/s
Max Tilt Descent Speed: 7 m/s
Max Horizontal Speed: 23 m/s
Max Service Ceiling Above Sea Level (without other payload): 5,000 m (with 1671 propellers) | 7,000 m (with 1676 propellers)
Max Wind Resistance: 15 m/s | 12 m/s during taking off and landing
Max Hover Time: 36 min
Max Flight Time: 41 min
Motor Model: 3511
Propeller Model: 1671 | 1676 High Altitude (not included)
Ingress Protection Rating: IP55
GNSS: GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)
Operating Temperature: -20° to 50° C (-4° to 122° F)
Gimbal
Angular Vibration Range: ±0.01°
Controllable Range: Pan: ±90° | Tilt: -120° to +45°
Mechanical Range: Pan: ±105° | Tilt: -135° to +60° | Roll: ±45°
Zoom Camera
Sensor: 1/2″ CMOS, Effective pixels: 48M
Lens: Focal length: 21-75 mm (equivalent: 113-405 mm) | Aperture: f/2.8-f/4.2 | Focus: 5 m to ∞
Wide Camera
Sensor: 1/2″ CMOS, Effective pixels: 12M
Lens: DFOV: 84° | Focal length: 4.5 mm (equivalent: 24 mm) | Aperture: f/2.8 | Focus: 1 m to ∞
Thermal Camera
Thermal Imager: Uncooled VOx Microbolometer
Lens: DFOV: 64° | Focal length: 9.1 mm (equivalent: 40 mm) | Aperture: f/1.0 | Focus: 5 m to ∞
Infrared Temperature Measurement Accuracy: ±2°C or ±2% (using the larger value)
FPV Camera
Resolution: 1920×1080
DFOV: 161°
Frame Rate: 30 fps
Laser Module
Wavelength: 905 nm
Max Laser Power: 3.5 mW
Single Pulse Width: 6 ns
Measurement Accuracy: ± (0.2 m + D×0.15%)D is the distance to a vertical surface
Measuring Range: 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
Vision Systems
Obstacle Sensing Range: Forward: 0.6-38 m | Upward/Downward/Backward/Sideward: 0.5-33 m
FOV: 65° (H), 50° (V)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared Sensing Systems
Obstacle Sensing Range: 0.1 to 10 m
FOV: 30°
Operating Environment: Large, diffuse, and reflective obstacles (reflectivity >10%)
TB30 Intelligent Flight Battery
Capacity: 5880 mAh
Voltage: 26.1 V
Battery Type: LiPo 6S
Energy: 131.6 Wh
Net Weight: Approx. 685 g
Operating Temperature: -20° to 50° C (-4° to 122° F)
Storage Temperature: 20° to 30° C (68° to 86° F)
Charging Temperature: -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Chemical System: LiNiMnCoO2
Auxiliary Lights
Effective Illumination Distance: 5 m
Illumination Type: 60 Hz, solid glow
Remote Controller
Screen: 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
Internal Battery: Type: Li-ion (6500 mAh @ 7.2 V) | Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) | Charge Time: 2 hours | Chemical System: LiNiCoAIO2
External Battery (WB37 Intelligent Battery): Capacity: 4920 mAh | Voltage: 7.6 V | Battery Type: Li-ion | Energy: 37.39 Wh | Chemical System: LiCoO2
Operating Time: Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
Ingress Protection Rating: IP54
GNSS: GPS+Galileo+BeiDou
Operating Temperature: -20° to 50° C (-4° to 122° F)
O3 Enterprise
Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz
Max Transmission Distance (unobstructed, free of interference): 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference): Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) | Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC) | Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
Transmitter Power (EIRP): 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Wi-Fi
Protocol: Wi-Fi 6
Operating Frequency: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
Transmitter Power (EIRP): 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) | 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) | 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)
Bluetooth
Protocol: Bluetooth 5.1
Operating Frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
BS30 Intelligent Battery Station
Dimensions: 353×267×148 mm
Net Weight: 3.95 kg
Compatible Battery Type: TB30 Intelligent Flight Battery | WB37 Intelligent Battery
Input: 100-240 VAC, 50/60 Hz
Output: TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) | WB37 Intelligent Battery: 8.7 V, 6 A
Output Power: 525 W
USB-C port: Max. output power of 65 W
USB-A port: Max. output power of 10 W (5 V, 2 A)
Power Consumption (when not charging battery): < 8 W
Output Power (when warming up battery): Approx. 30 W
Operating Temperature: -20° to 40° C (-4° to 104° F)
Ingress Protection Rating: IP55 (with the cover closed properly)
Charging Time: Approx. 30 min (charging two TB30 batteries from 20%-90%) | Approx. 50 min (charging two TB30 batteries from 0%-100%)
Protection Features: Anti-Backflow Protection | Short Circuit Protection | Over Voltage Protection | Over Current Protection | Temperature Protection
