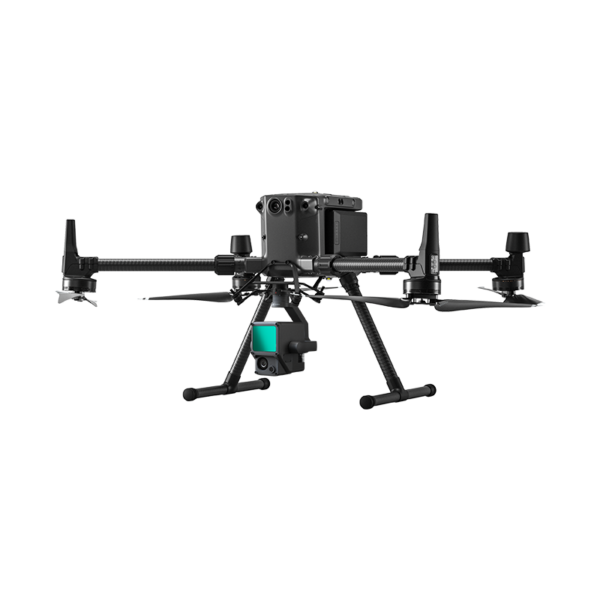

Matrice 300 RTK
Aircraft Body × 1
DJI Smart Controller Enterprise × 1
USB Charger × 1
USB-C Cable × 1
TB60 Intelligent Flight Battery × 2
WB37 Intelligent Battery × 1
2110 Propeller (CW) (pair) × 1
2110 Propeller (CCW) (pair) × 1
Landing Gear × 2
Spare Stick Cover (pair) × 1
Spare Propeller Holder × 2
Spare Gimbal Damper × 4
USB Cable (with Double A Ports) × 1
Vision System Calibration Plate × 1
Carrying Case × 1
Smart Controller Lanyard × 1
Rubber Port Cover (Set) × 1
Screws and Tools × 1
BS60 Intelligent Battery Station x 1
Zenmuse L1
Gimbal and Camera × 1
MicroSD card （64GB）× 1
Storage Case × 1
Lens Cleaning Cloth × 1
Features built-in RTK module to help the drone withstand magnetic interference from metal structures for more stable flights. RTK support also provides the possibility of extremely accurate positioning data with the optional D-RTK 2 GNSS mobile station. Its reliability and durability make it ideal for firefighting, law enforcement, search and rescue, inspection of buildings and structures, and various other industrial and commercial applications.
- 55 min Max Flight Time
- 15km 1080p map transmission
- 6 Directional Sensing and Positioning
- -20°C to 50°C operating temperature
Aircraft
Dimensions:
Unfolded, propellers excluded, 810×670×430 mm (L×W×H)
Folded, propellers included, 430×420×430 mm (L×W×H)
Diagonal Wheelbase: 895 mm
Weight (with single downward gimbal):
Approx. 3.6 kg (without batteries)
Approx. 6.3 kg (with two TB60 batteries)
Max Payload: 2.7 kg
Max Takeoff Weight: 9 kg
Operating Frequency:
2.4000-2.4835 GHz
5.725-5.850 GHz
EIRP:
2.4000-2.4835 GHz:
29.5 dBm (FCC); 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
28.5 dBm (SRRC)
Hovering Accuracy (P-mode with GPS)
Vertical:
±0.1 m (Vision System enabled)
±0.5 m (GPS enabled)
±0.1 m (RTK enabled)
Horizontal:
±0.3 m (Vision System enabled)
±1.5 m (GPS enabled)
±0.1 m (RTK enabled)
RTK Positioning Accuracy
When RTK enabled and fixed:
1 cm+1 ppm (Horizontal)
1.5 cm + 1 ppm (Vertical)
Max Angular Velocity
Pitch: 300°/s, Yaw: 100°/s
Max Pitch Angle:
30° (P-mode, Forward Vision System enabled: 25°)
Max Ascent Speed:
S mode: 6 m/s
P mode: 5 m/s
Max Descent Speed (vertical):
S mode: 5 m/s
P mode: 4 m/s
Max Descent Speed (tilt):
S Mode: 7 m/s
Max Speed:
S mode: 23 m/s
P mode: 17 m/s
Service Ceiling Above Sea Level:
5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)
Max Wind Resistance: 15 m/s
Max Flight Time: 55 min

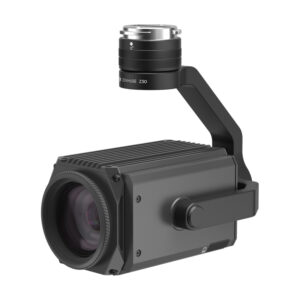

Supported DJI Gimbals: Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1
Supported Gimbal Configurations:
Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals
Ingress Protection Rating: IP45
GNSS: GPS+GLONASS+BeiDou+Galileo
Operating Temperature: -20°C to 50°C (-4°F to 122° F)
Remote Controller
Operating Frequency:
2.4000-2.4835 GHz
5.725-5.850 GHz
Max Transmitting Distance (unobstructed, free of interference):
NCC/FCC: 15 km
CE/MIC: 8 km
SRRC: 8 km
EIRP:
2.4000-2.4835 GHz:
29.5 dBm (FCC) 18.5dBm (CE)
18.5 dBm (SRRC); 18.5dBm (MIC)
5.725-5.850 GHz:
28.5 dBm (FCC); 12.5dBm (CE)
20.5 dBm (SRRC)
External battery:
Name: WB37 Intelligent Battery
Capacity: 4920 mAh
Voltage: 7.6V
Type: LiPo
Energy: 37.39Wh
Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)
Built-in battery:
Type: 18650 lithium ion battery (5000 mAh @ 7.2 V)
Charging: Use a USB charger with specification of 12V / 2A
Rated power: 17 W
Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)
Battery Life:
Built-in battery: Approx. 2.5h
Built-in battery+External battery: Approx. 4.5h
USB Power Supply: 5 V / 1.5 A
Operating Temperature: -20°C to 40°C (-4 °F to 104 °F)
Vision System
Obstacle Sensing Range:
Forward/Backward/Left/Right: 0.7-40m
Upward/Downward: 0.6-30m
FOV:
Forward/Backward/Downward: 65° (H), 50° (V)
Left/Right/Upward: 75°(H), 60°(V)
Operating Environment:
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared ToF Sensing System
Obstacle Sensing Range: 0.1-8m
FOV: 30° (±15°)
Operating Environment:
Large, diffuse and reflective obstacles (reflectivity >10%)
Top and bottom auxiliary light
Effective lighting distance: 5 m
FPV Camera
Resolution: 960p
FOV: 145°
Frame rate: 30 fps
Intelligent Flight Battery
Name: TB60
Capacity: 5935 mAh
Voltage: 52.8 V
Battery Type: LiPo 12S
Energy: 274 Wh
Net Weight: Approx. 1.35 kg
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Ideal storage temperature: 71.6°F to 86°F (22°C to 30°C)
Charging Temperature: -4°F to 104°F (-20°C to 40°C)
(When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
Charging time
Using BS60 Intelligent Battery Station:
220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%)
110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)
BS60 Intelligent Battery Station
Dimensions: 501*403*252mm
Net Weight: 8.37kg
Maximum Capacity:
TB60 Intelligent Flight Battery × 8
WB37 Intelligent Battery × 4
Input: 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz
Max. Input Power: 1070W
Output Power:
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature: -4°F to 104°F (-20°C to 40°C)
