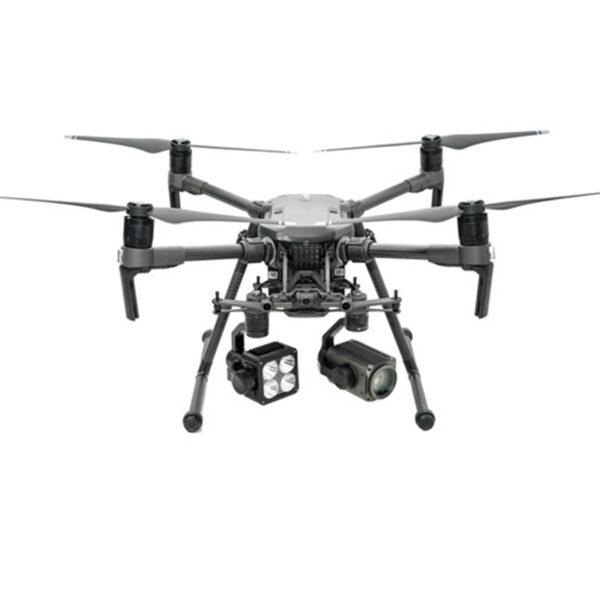

DJI Wingsland Z15 gimbal Spotlight (Z15) Two Payloads

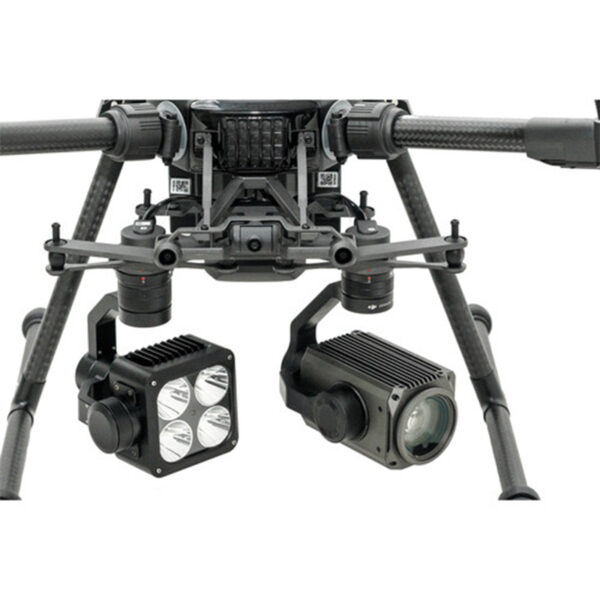

DJI Wingsland Z15 gimbal Spotlight (Z15) Detail

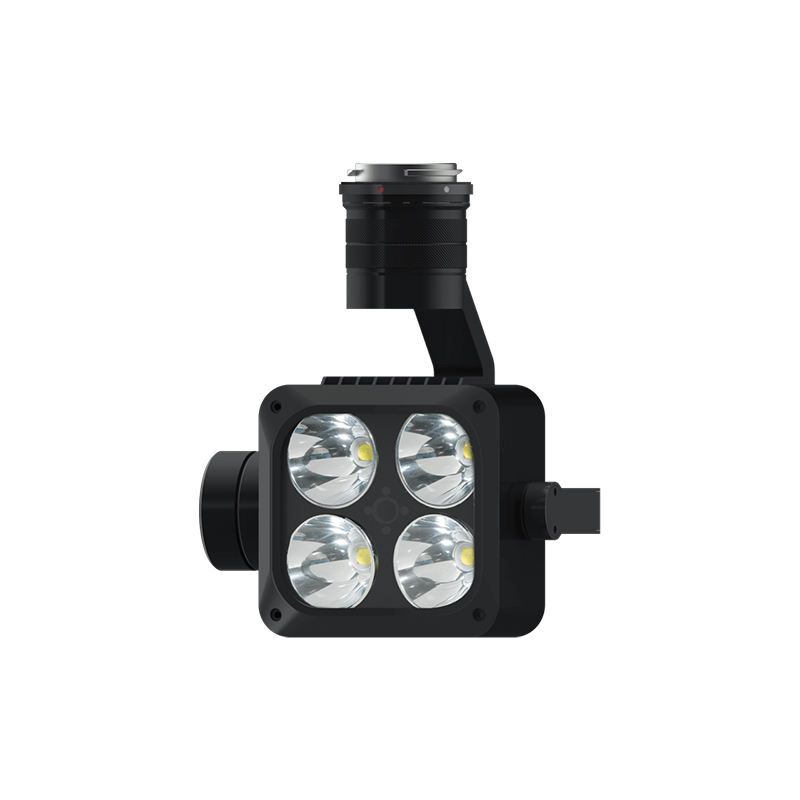

DJI Wingsland Z15 Gimbal Spotlight


The Wingsland Z15 is a bright, 3-axis stabilized gimbal spotlight with high power beads.

Add a high-powered LED drone spotlight to your safety or infrastructure program with this Wingsland Z15 Gimbal Spotlight from DJI. The spotlight is compatible with the DJI Matrice 200 and 200 v2 series drones and connects to the SkyPort connection on the drone. It can be installed side-by-side with a Zenmuse gimbal camera if desired.

The Z15 spotlight operates close to a 500′ maximum range, and its four LEDs with a 10,200-lumen brightness can light up an approximate area of 6000′ from an altitude of up to 400′. It features a built-in air-cooling system and a safety protection system that protects the light when it reaches 194°F. The spotlight can run in three different modes to match your environment and situation: Always On, Flashing, and SOS. Use the Z15 to light the way in fire safety, search and rescue, law enforcement, and infrastructure maintenance applications.

  • Bright 10,200-lumen drone spotlight
  • 48W power
  • Four LED units
  • 15° field of view
  • Fits DJI Matrice 200 and 200 v2 series drones
  • Dual downward gimbal support alongside Zenmuse payloads
  • Air-cooling system with intelligent temperature protection over 194°F
  • 48V maximum power
  • 6112′ maximum illumination area at 394′ altitude
  • 492′ maximum range
  • Multiple modes: Always On, Flashing, SOS

Switch between Always on, Flashing, and SOS modes for different environments and applications.

Air Cooling System
The built-in air-cooling system prevents the spotlight from overheating by constantly dissipating heat.

Intelligent Protection
The Wingsland Z15 is protected against overheating. The system will automatically adjust when the internal temperature exceeds 90℃.

Supports Dual Downward Gimbals
The Wingsland Z15 can be used with DJI Zenmuse payloads on DJI aircraft that include a dual-downward gimbal, helping to illuminate operations.

Public Safety: Thanks to its high luminance and long operating range, the Wingsland Z15 provides public safety officials crucial visibility in lowlight conditions across many different types of missions, helping teams gain an aerial overview over a large area. Some applications include:

Firefighting: light up a path to guide the public to a safe place after a fire or a natural disaster.

Emergency Response/Search and Rescue: locate missing persons in hard-to-reach areas when visibility is low.

Law Enforcement: act as a flexible light source for crowd management, forensic investigations, or routine patrols.

Compatible Products:
DJI Matrice 200 Series, Matrice 200 Series V2

Weight 2.03 lbs
Dimensions 10.43 × 8.46 × 7.68 in
