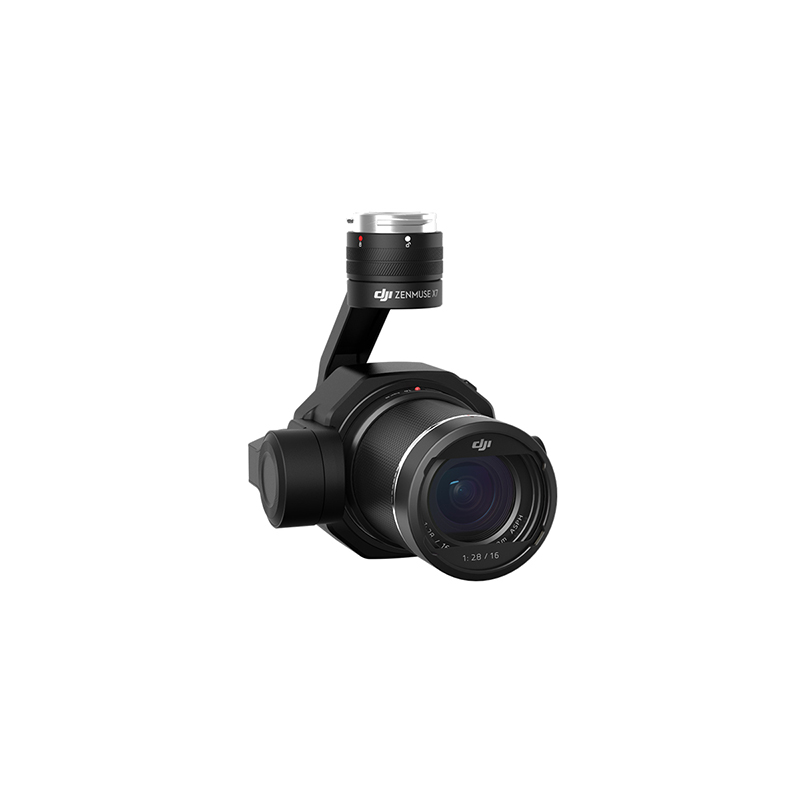

DJI Zenmuse X7 Angle

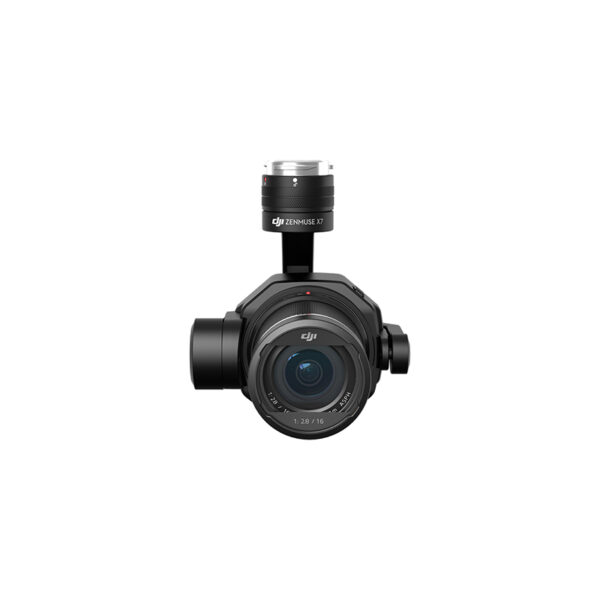

DJI Zenmuse X7 Front

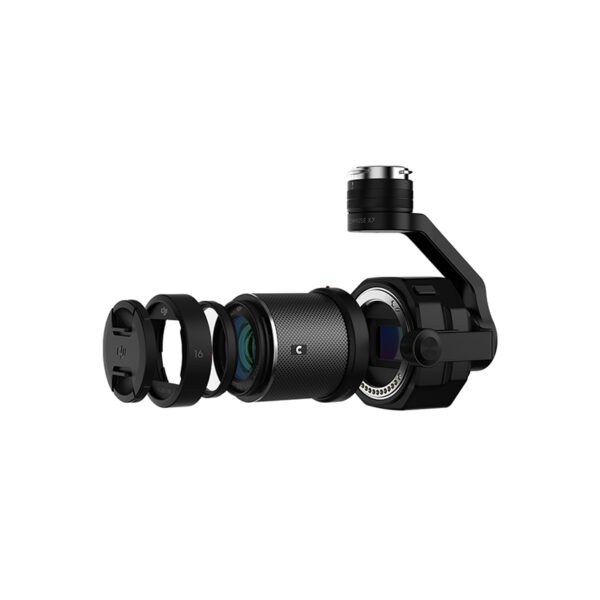

DJI Zenmuse X7 Detail

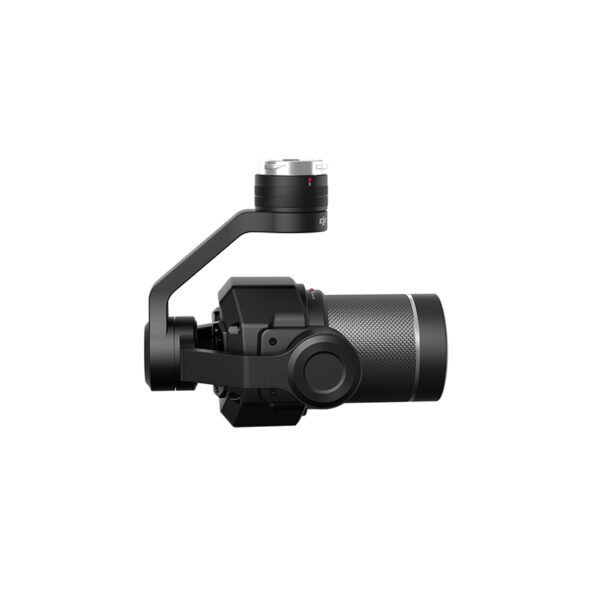

DJI Zenmuse X7 Left

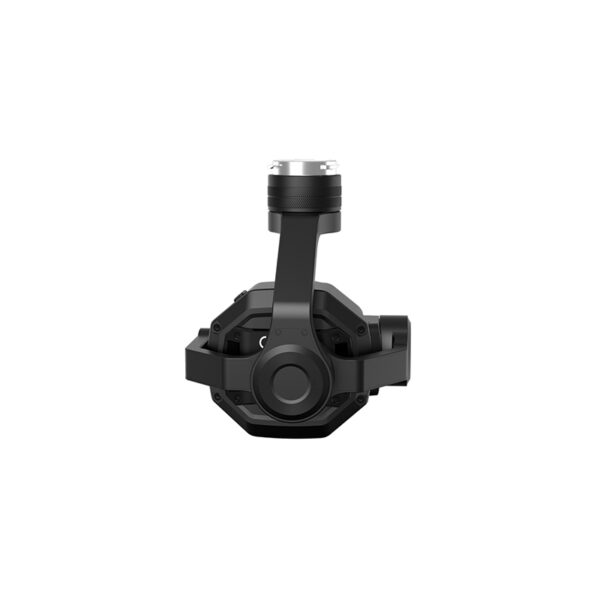

DJI Zenmuse X7 Back

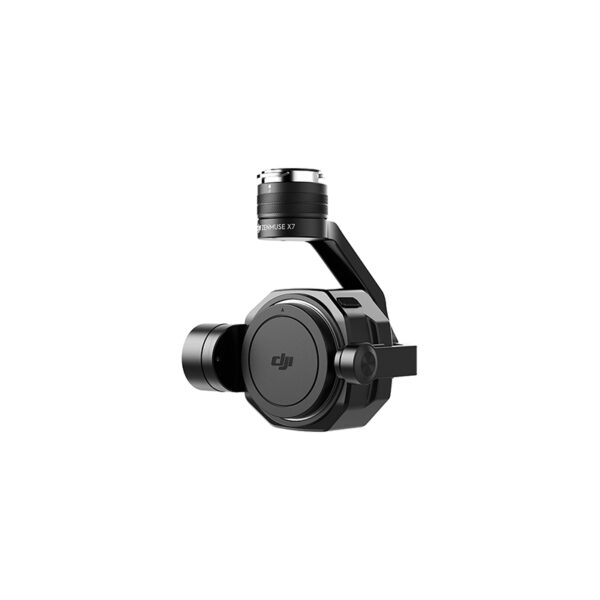

DJI Zenmuse X7 NO Lens

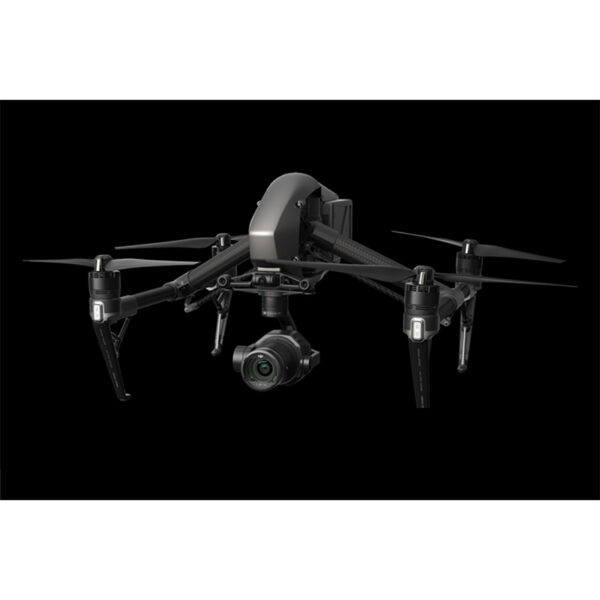

DJI Zenmuse X7 Application

DJI Zenmuse X7 Standard Kit

$7,599.00

A compact Super 35 camera with an integrated gimbal made for high-end filmmaking.



Out of stock

Get In-Stock Notification


Zenmuse X7 × 1
Carrying Box × 1

The Zenmuse X7 is a compact Super 35 camera with an integrated gimbal made for high-end filmmaking that delivers stunning resolution and image quality. Its compatibility with the Inspire 2 offers the best in next-level professional aerial cinematography.A 24 MP CMOS sensor rated at 14 stops of dynamic range preserves astonishing detail and offers both 6K CinemaDNG and5.2K Apple ProRes with support for continuous RAW burst shooting at 20 fps and 24 MP stills.

The X7 also introduces the DL-Mount, the world’s first integrated aerial lens mount that allows switching between four available prime lenses quickly. For seamless editing, a new DJI Cinema Color System preserves accurate colors for easier post-processing.These latest innovations allow filmmakers to reach new heights and capture scenes as they imagine them with the DJI Zenmuse X7.

ENGINEERED FOR EXCELLENCE
The X7 uses a Super 35 sensor, and its high readout speed supports RAW output at 6K/30 fps and 3.9K/59.94 fps. The pixel size reaches 3.91 µm and the diagonal length of the sensor is 26.6 mm when recording. A sensor this size offers a higher sensitivity to light and 14 stops of dynamic range — much wider than the 12.8 stops featured on the Zenmuse X5S.Furthermore, the SNR of the X7 is 46 dB, 8 dB higher than the X5S, and the tonal range is as high as 9.41 bits. All of these features offer unlimited creative options for a better workflow in the most demanding situations on set.

DJI DL-MOUNT SYSTEM
Taking advantage of new FSI-Cu technology, the X7’s sensor features thinner interconnection, allowing light to reach the sensing area via a larger incident angle for increased photosensitivity. This enables amore compact lens mount to be used on this sensor while maintaining excellent image quality.The flange focal distance of the DL-Mount is less than 17 mm – roughly 1/3 of the size of a PL-Mount. Such a compact mount means that the X7 weighs only about 630 g with a lens included. Together, the X7 and Inspire 2 weigh around just 4 kg with the ability to capture the same challenging shots as more heavy-duty setups weighing up to 40 kg.

DL LENSES
DJI offers four prime lenses for the DL-Mount system, with focal lengths ranging from 16-50 mm and resolutions of up to 8K. Made of lightweight carbon fiber and designed by world-leading optics teams, the four lenses have been embedded with advanced technologies crafted specifically for the X7’s high-end image sensor.

APPLE PRORES RAW
DJI has obtained authorization from Apple for the latest Apple ProRes RAW. When mounted to the Inspire 2, the Zenmuse X7 is capable of recording 6K 14-bit Apple ProRes RAW video at 23.976 fps.

MORE CREATIVE FLEXIBILITY
To unleash the X7’s full potential, the CineCore image processing system on the Inspire 2 has been fully upgraded to CineCore 2.1.It is capable of recording 6K/30fps CinemaDNG and 5.2K/30fpsApple ProRes, leaving more creative options in post-production.

A brand new EI Mode has been integrated into CineCore 2.1, which can record high-quality footage at various levels of sensitivity. Additionally, the upgraded image processing system further reduces image artifacts and noise, preserving more details while adopting an improved dark level correction system for pro-level cinematic images.

Apart from improved image processing performance, CineCore 2.1 also features a new color system, giving professional filmmakers more creative flexibility in post-production.

  • Inspire 2 Compatibility
  • 5.2K Apple ProRes
  • Super 35 Sensor
  • 14 Stops of Dynamic Range
  • 6K CinemaDNG
  • 24 MP Stills

General
Product Name: Zenmuse X7
Dimensions: 151 × 108 × 132 mm
Weight (Lens Excluded): 449 g

Camera
Sensor
Sensor Size (Still): 23.5×15.7 mm
Sensor Size (Max video recording area): 23.5×12.5 mm
Effective Pixels: 24 MP

Supported Lenses:
DJI DL-S 16mm F2.8 ND ASPH (with lens hood and balancing ring/filter)
DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter)
DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter)
DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter

Supported Micro SD/SSD Cards
MicroSD: Class 10 or UHS-1 rating with a writing speed of 15 MB/s required; Max capacity: 128 GB
SSD: DJI CINESSD

Photo Sizes
3:2 (6016 × 4008)
16:9 (6016 × 3376)
4:3 (5216 × 3912)

Photo Formats: DJI CINESSD: DNG
Micro SD: DNG, JPEG, DNG+JPEG
Operation Modes: Capture, Record, Playback

Still Photography Modes
Micro SD: Single Shot, Burst Shooting (3/5/7/10 shots), Auto Exposure Bracketing (3/5 bracketed shots at 0.7 EV bias), Interval

SSD: RAW Burst (3/5/7/10/14/∞ frames), up to 20 fps when using RAW Burst (exact quantity is determined by storage card capacity and battery power level)

Shutter Speed
Electronic Shutter Speed: 1/8000 – 8s
Mechanical Shutter Speed: 1/1000 – 8s (DJI DL-S 16mm F2.8 ND ASPH not supported)

ISO Range
Photo: 100 – 25600
Video: 100 – 1600 (EI mode on); 100 – 6400 (EI mode off)

Video
Video Formats: CINESSD: CinemaDNG, ProRes
Micro SD: MOV, MP4

Video Resolution
Aspect Ratio 17:9

CinemaDNG
6K: 6016×3200, 23.976p, 14-bit
6K: 6016×3200, 24/25/29.97/30p, 12-bit
5.4K: 5440×2880, 23.976/24p, 14-bit
4K DCI: 4096×2160, 23.976p, 14-bit
4K DCI: 4096×2160, 24/25/29.97/30/47.95/48p, 12-bit
3.9K: 3944×2088, 50/59.94p, 12-bit

ProRes RAW
6K: 6016×3200, 23.976p, 14-bit
6K: 6016×3200, 24/25/29.97/30p, 12-bit
5.4K: 5440×2880, 23.976/24p, 14-bit
4K DCI: 4096×2160, 47.95/48p, 12-bit

ProRes RAW HQ
6K: 6016×3200, 23.976p, 14-bit

ProRes
4K DCI: 4096×2160, 23.976/24/25/29.97/30p, 10-bit, HQ
2K: 2048×1080, 47.95/50/59.94p, 10-bit, HQ/XQ

H.264
4K DCI: 4096×2160, 24/25/30/48/50/59.94p

H.265
4K DCI: 4096×2160, 24/25/30p
HD: 1280×720, 24/25/30/48/50/59.94p
Aspect Ratio 16:9

CinemaDNG
6K: 5760×3240, 23.976p, 14-bit
6K: 5760×3240, 24/25/29.97/30p, 12-bit
5.1K: 5120×2880, 23.976/24p, 14-bit
4K Ultra HD: 3840×2160, 23.976p, 14-bit 4K Ultra HD: 3840×2160, 24/25/29.97/30/47.95/48p, 12-bit
3.7K: 3712×2088, 50/59.94, 12-bit

ProRes RAW
6K: 5760×3240, 23.976p, 14-bit
6K: 5760×3240, 24/25/29.97/30p, 12-bit
5.1K: 5120×2880, 23.976/24p, 14-bit
4K Ultra HD: 3840×2160, 47.95/48p, 12-bit

ProRes RAW HQ
6K: 5760×3240, 23.976p, 14-bit

ProRes
4K Ultra HD: 3840×2160, 23.976/24/25/29.97p, 10-bit, HQ/XQ
2.7K: 2704×1520, 47.95/50/59.94p, 10-bit, HQ
FHD:1920×1080, 47.95/50/59.94p, 10-bit, HQ/XQ

H.264
4K Ultra HD: 3840×2160, 24/25/30/48/50/59.94p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
HD: 1280×720, 24/25/30/48/50/59.94p

H.265
4K Ultra HD: 3840×2160, 24/25/30p
2.7K: 2720×1530, 24/25/30/48/50/59.94p
FHD: 1920×1080, 24/25/30/48/50/59.94p
Aspect Ratio 2.44:1

CinemaDNG
5.2K: 5280×2160, 23.976p, 14-bit
5.2K: 5280×2160, 24/25/29.97/30/47.95/48p, 12-bit

ProRes
5.2K: 5280×2160, 23.976/24/25/29.97/30p, 10-bit, HQ
H.264/H.265
4K Ultra HD: 3840×1572, 30p
(FOV will be narrower when shooting at a high frame rate. For more information, please refer to the Zenmuse X7 User Manual.)

Gimbal
Angular Vibration Range: ±0.005°
Mount: Detachable

Controllable Range
Tilt: +40° to -125°; Pan: ±300°; Roll: ±20°

Mechanical Range
Tilt: +50° to -130°; Pan: ±330°; Roll: +90° to -50°

Max Controllable Speed
Tilt: 180°/s; Roll: 180°/s; Pan: 360°/s

Camera Features
Exposure Mode: Auto, Manual, Shutter Priority, Aperture Priority
Exposure Compensation: ±3.0 (3 stops of light)
Metering: Center-Weighted Metering, Spot Metering (12 × 8 area selection)
AE Lock: Supported
White Balance: Auto, Sunny, Cloudy, Incandescent, Neon, Custom (2000 K – 10000 K)
Video Caption: Supported (AVC/HEVC)
PAL/NTSC: Supported
Ultrasonic Dust Removal: Supported

Temperature
Operating Temperature Range: -4 to 104° F (-20 to 40° C)
Storage Temperature Range: -4 to 140° F (-20 to 60° C)
