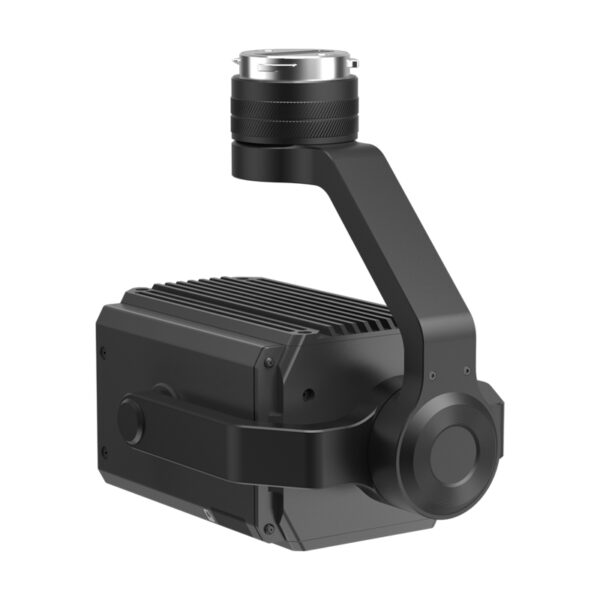

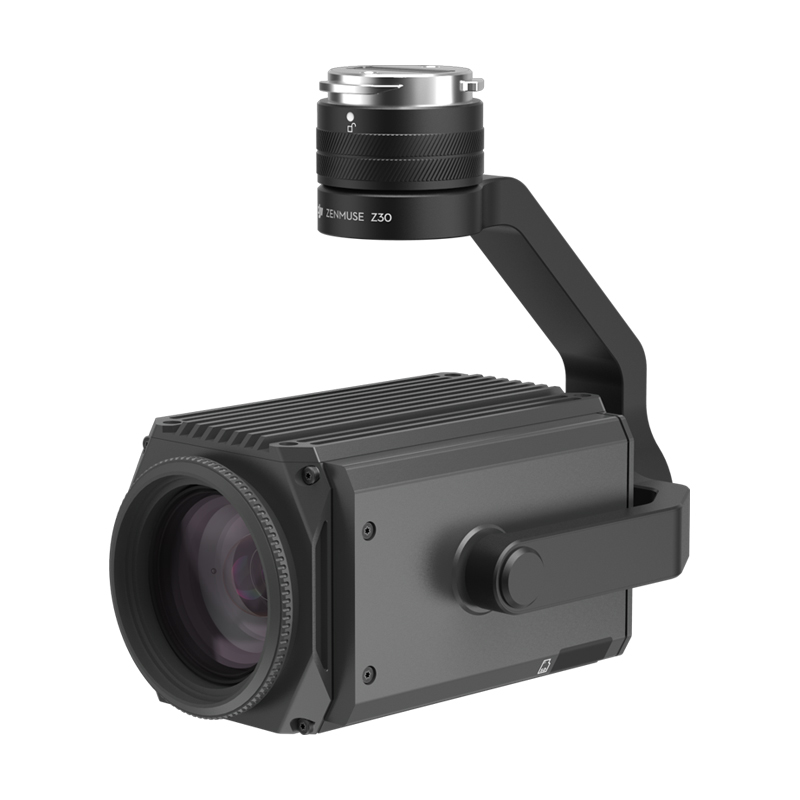

DJI Zenmuse Z30

$2,999.00

The Zenmuse Z30 is the first integrated aerial camera with up to 30x optical zoom and digital zoom up to 6x.

Availability: 1 in stock

Gimbal and Camera x 1
16GB Micro SD Card x 1

Aerial platforms are rapidly becoming vital tools for businesses looking to more efficiently collect information crucial to their operations. The Zenmuse Z30 is the first integrated aerial camera with up to 30x optical zoom and digital zoom up to 6x. This camera and gimbal system offers unparalleled image data capture. Enterprise users of DJI products are now able to capture the information they require from a greater range making image data collection significantly faster. Also, the Zenmuse Z30 significantly reduces risk of harm to both personnel and equipment.

Designed to seamlessly integrate with DJI’s Matrice series of airframes, the Zenmuse Z30 works right out of the box and gives access to the intelligent features DJI is known for.

ZOOM
The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components for the purpose of detecting defects and damage.

As a result of allowing detailed inspections from a distance without the need to fly close to the subject, not only is speed and efficiency of your operations increased, but the risk of collision is all but eliminated.

STABILIZATION
A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The Zenmuse Z30 incorporates DJI’s leading gimbal technology for stabilization within 0.01°, and the same precision for controls. This enables long-range inspection with high reliability.

TAPZOOM
With TapZoom, precise collection of visual data is as easy as tapping your finger to point the camera at the subject of your inspection. The Zenmuse Z30 automatically adjusts its focal length to give you an enlarged view, making the most miniscule of details visible in just seconds.

  • 30X Optical Zoom
  • 6X Digital Zoom
  • Total magnification of 180X
  • Inspect cell towers, wind turbines, and more
  • Works with Matrice platform

General
Name: Zenmuse Z30
Dimensions: 152×137×61 mm
Weight: 556 g

Camera
Sensor: CMOS, 1/2.8”
Effective Pixels: 2.13 M

Lens: 30x Optical Zoom
F1.6 (Wide) – F4.7 (Tele)

Zoom Movement Speed:
– Optical Wide – Optical Tele: 4.6 sec
– Optical Wide – Digital Tele: 6.4 sec
– Digital Wide – Digital Tele : 1.8 sec

Focus Movement Time:
∞ – near: 1.1 sec

FOV: 63.7°(Wide) – 2.3°(Tele)
Digital Zoom: 6x
Min. Working Distance: 10 mm – 1200 mm
Photo Formats: JPEG
Video Formats: MOV, MP4
Working Modes: Capture, Record, Playback

Still Photography Modes:
Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec)

Exposure Mode: Exposure Mode Auto, Manual, Shutter priority, Aperture priority
Exposure Compensation: ±2.3 (1/3 increments)
Metering Mode: Center-weighted metering, Spot metering (Area option 12×8)
AE Lock: Supported
Electronic Shutter Speed: 1/30 – 1/6000 s
White Balance: Auto, Sunny, Cloudy, Incandescent, Custom (2000K – 10000K)
Video Captions: Supported
TapZoom: Supported
TapZoom Range: 1-5
Defog: Supported
One Key to 1x Image: Supported
Anti-flicker: 50 Hz, 60 Hz
PAL/NTSC: Supported

Supported SD Cards:
MicroSD (SD / SDHC / SDXC)

Max. Capacity: 64 GB, Class 10 or UHS-1

Supported File Systems:
FAT32 (≤ 32 GB)
exFAT (> 32 GB)

Gimbal
Angular Vibration Range: ±0.01°
Mount: Detachable

Controllable Range
Pitch : +30° to -120°, Yaw: ±320°

Mechanical Range
Pitch : +50° to -140°, Yaw: ±330°, Roll: +90° to -50°

Max Controllable Speed
Pitch : 180°/s, Yaw: 180°/s

Environmental
Operating Temperature: 14° to 113° F (-10° to 45° C)
Non-Operating Temperature: -4° to 140° F (-20° to 60° C)

Weight 1.85 lbs
Dimensions 9.06 × 6.70 × 7.87 in
