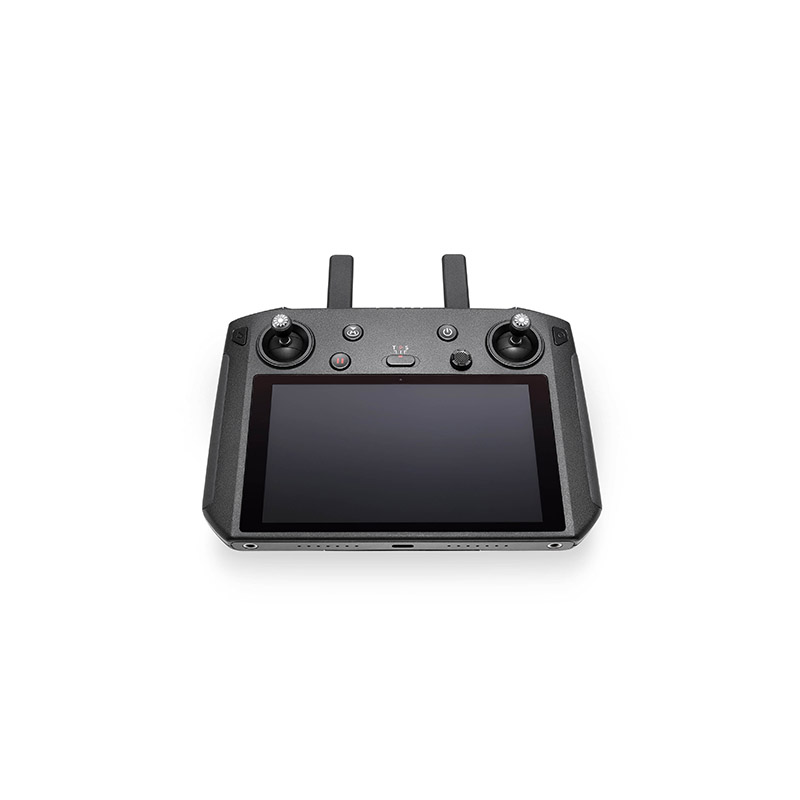

DJI Smart Controller (16GB) Front

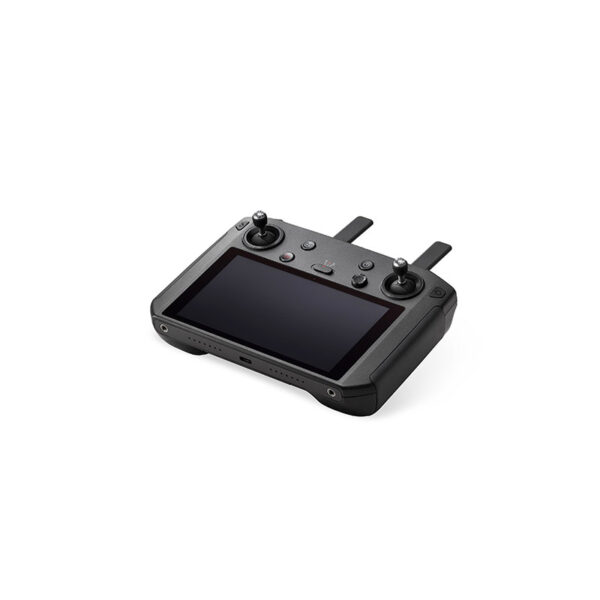

DJI Smart Controller (16GB) Top Angle

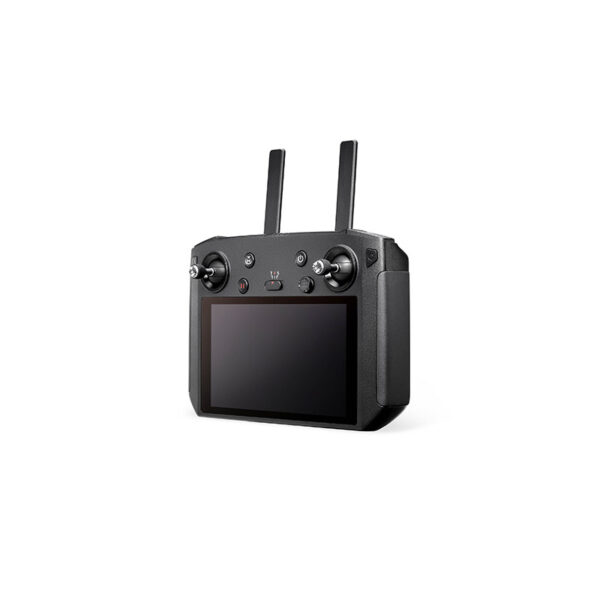

DJI Smart Controller (16GB) Angle Left

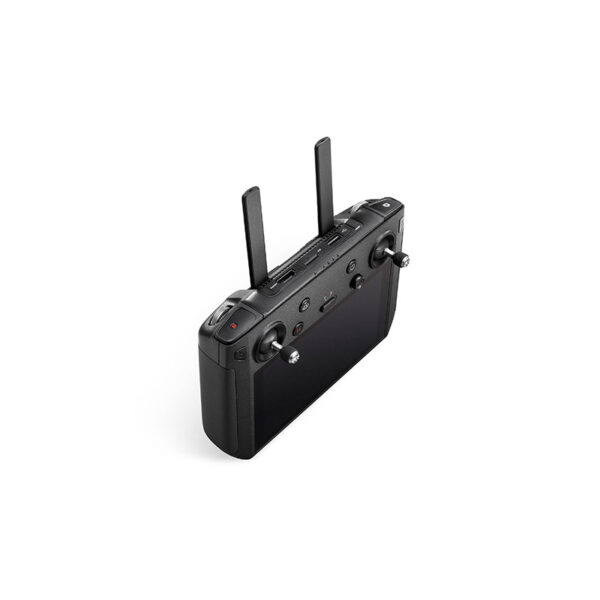

DJI Smart Controller (16GB) Top Side Angle

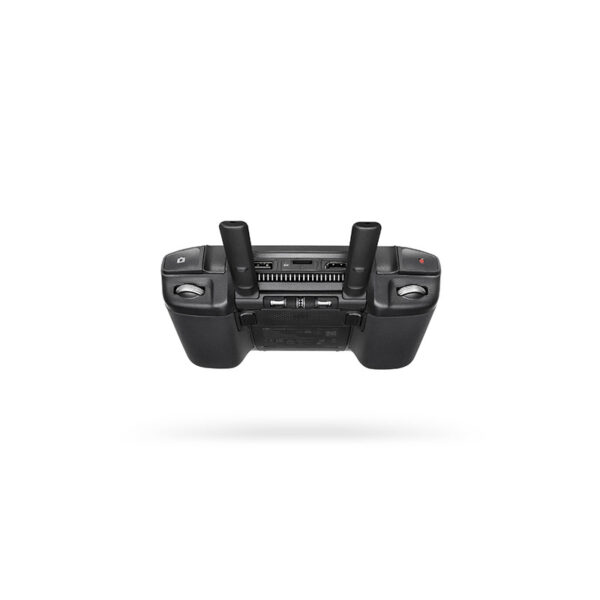

DJI Smart Controller (16GB) Top Back

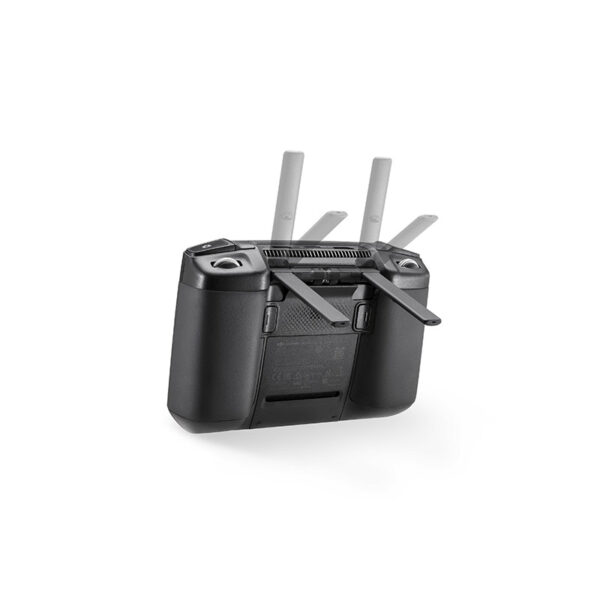

DJI Smart Controller (16GB) Back

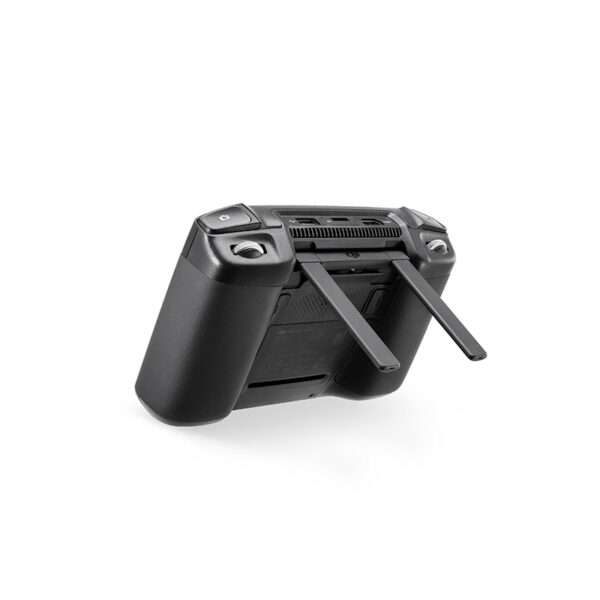

DJI Smart Controller (16GB) Back Left

DJI Smart Controller (16GB)

$749.00

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.

Out of stock

Get In-Stock Notification


DJI Smart Controller x 1
Communication Cable (USB 3.0 Type-C) x 1
Spare Control Sticks (pair) x 1

The DJI Smart Controller is designed to maximize your outdoor flying experience with the Mavic 2 or other aircraft equipped with OcuSync 2.0.[1] A 5.5-inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 App , DJI Fly App get you up in the air quicker, clearer, and more conveniently than ever before.

The DJI Smart Controller has a built-in 5.5-inch 1080p screen, providing an ultra-bright display to keep your live feed easily viewable, even in direct sunlight. At 1000 cd/m2, the display is approximately twice as bright as conventional smart device screens.

Equipped with OcuSync 2.0 Full-HD video transmission technology, the DJI Smart Controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drone operation and image quality. This also ensures reliable long-range transmission at distances of up to 10 km.[2]

The DJI Smart Controller connects to your drone as soon as it’s powered on so you can take off fast and never miss a moment of the action. Featuring an integrated design with detachable control sticks, the DJI Smart Controller is also portable enough to bring with you anywhere.

The DJI Smart Controller is capable of stable operation in temperatures ranging from -20°C to 40°C, giving you a reliable HD connection with your drone in more places.

Easily transfer your aerial photos and videos from the DJI Smart Controller to your mobile device using the DJI GO 4 app’s new Go Share function.

The DJI Smart Controller’s customized Android system and optimized DJI GO 4 app give you freedom from the restraints of conventional mobile devices to ensure faster, focused aerial creation. The Smart Controller also supports third-party apps[3] for a variety of additional sharing and editing options.

The DJI Smart Controller comes with a built-in microphone and speaker for expanded options such as livestreaming. It can also playback video through the HDMI output port at 4K with H.264 or H.265.

The new SkyTalk[4] feature is an amazing way to let others in on your aerial experience. Use it to livestream your drone’s camera view directly to social media platforms like Facebook and Instagram.[5] It also allows you to create and share short videos instantly.

The 5000mAh battery supports Quick Charging and can work continuously for up to 2.5 hours.

Notes:

1.The DJI Smart Controller is compatible with DJI Mini 2, Mavic Air 2, Mavic 2 and Mavic 2 Enterprise Series, Phantom 4 Pro V2.0. To ensure compatibility, always make sure your aircraft is updated with the latest firmware.

2. These results were measured using the Mavic 2. Individual results may vary depending on environment, use type, or firmware version.

3. DJI will not be liable for any permission or safety issues resulting from use of third-party apps. If an installed third-party app prevents you from enjoying optimal use of your controller, we suggest you remove the app or restore the controller to the original factory settings.

4. Coming soon; always make sure your DJI Smart Controller has latest DJI GO app and firmware.

5. Wi-Fi required.

OcuSync 2.0
Operation Frequency Range: 2.400-2.4835 GHz, 5.725-5.850 GHz[1]

Max Transmission Distance (unobstructed, free of interference)
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Transmitter Power (EIRP):
2.400-2.4835 GHz:
25.5 dBm (FCC), 18.5 dBm (CE), 19 dBm (SRRC), 18.5 dBm (MIC)
5.725-5.850 GHz:
25.5 dBm (FCC), 12.5 dBm (CE), 18.5 dBm (SRRC)

Wi-Fi
Protocol: Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported

Operation Frequency Range:
2.400-2.4835 GHz, 5.150-5.250 GHz
5.725-5.850 GHz

Transmitter Power (EIRP):
2.400-2.4835 GHz:
21.5 dBm (FCC), 18.5 dBm (CE)
18.5 dBm (SRRC), 20.5 dBm (MIC)
5.150-5.250 GHz:
19 dBm (FCC), 19 dBm (CE)
19 dBm (SRRC), 19 dBm (MIC)
5.725-5.850 GHz:
21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC)

Bluetooth
Protocol: Bluetooth 4.2
Operation Frequency Range: 2.400-2.4835 GHz
Transmitter Power (EIRP): 4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC)

General
Battery: 18650 Li-ion (5000 mAh @ 7.2 V)
Charge Type: Supports USB power adapters rated 12 V/2 A
Rated Power: 15 W
Storage Capacity: ROM 16 GB + scalable (microSD)
Charging Time: 2 hours (using a USB power adapter rated 12 V/2 A)
Working Time: 2.5 hours
Video Output Port: HDMI Port
Power Supply Current / Voltage (USB-A port): 5 V/ 900 mA
Operation Temperature Range: -4° to 104° F (-20° to 40° C)

Storage Temperature Range:
<1 month: -22° to 140° F (-30° to 60° C)
1-3 months: -22° to 113° F (-30° to 45° C)
3-6 months: -22° to 95° F (-30° to 35° C)
>6 months: -22° to 77° F (-30° to 25° C)

Charging Temperature Range: 41° to 104° F (5° to 40° C)
Supported Aircraft Models[2]: Please visit the official website for the latest information.
GNSS: GPS+GLONASS

Dimensions:
177.5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted)
177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted)

Weight: Approx. 630 g
Model: RM500

Supported SD Cards
Supported SD Cards: microSD™
Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3

Footnotes
1. Local regulations in some countries prohibit the use of the 5.8 GHz and 5.2 GHz frequencies. In some regions, the 5.2 GHz frequency band is only allowed for indoor use.
2. The Smart Controller will support more DJI aircraft models in the future. Please visit the official website for the latest information.

Weight 1.19 lbs
Dimensions 8.03 × 2.17 × 8.86 in
