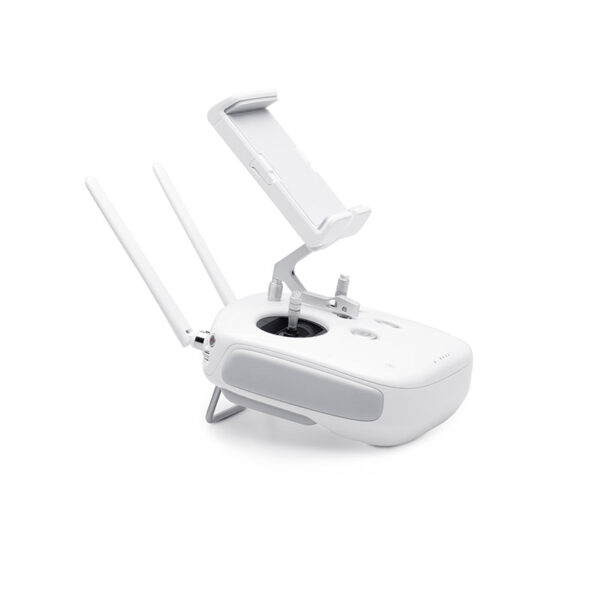

Phantom 4 RTK SDK Remote Controller Right

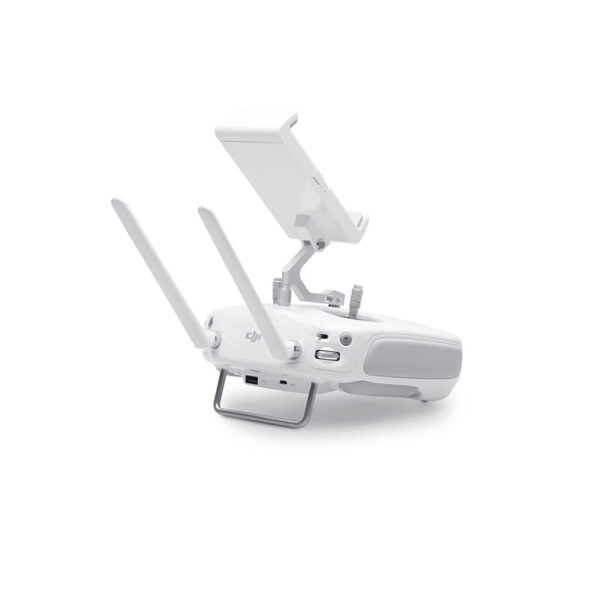

Phantom 4 RTK SDK Remote Controller Back Right

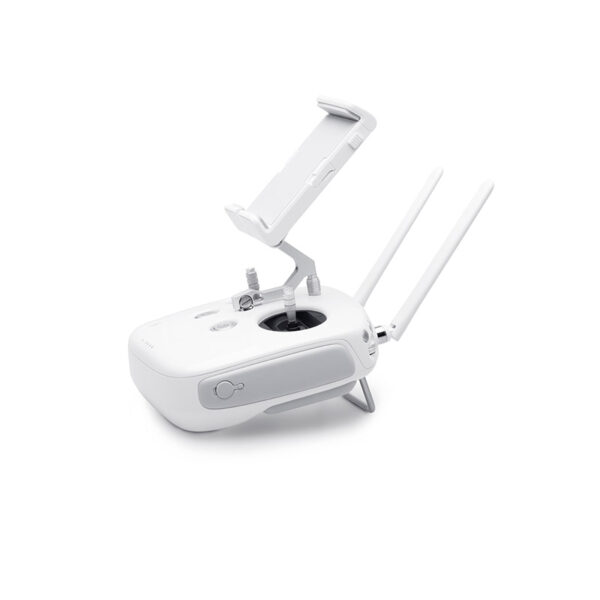

Phantom 4 RTK SDK Remote Controller Left

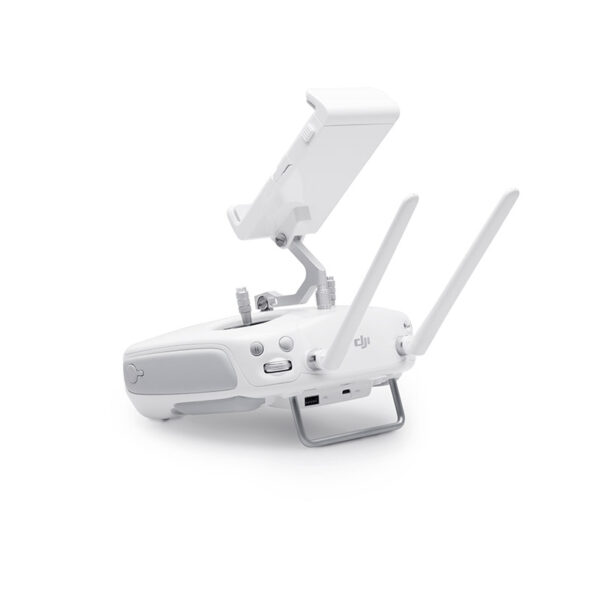

Phantom 4 RTK SDK Remote Controller Back Left

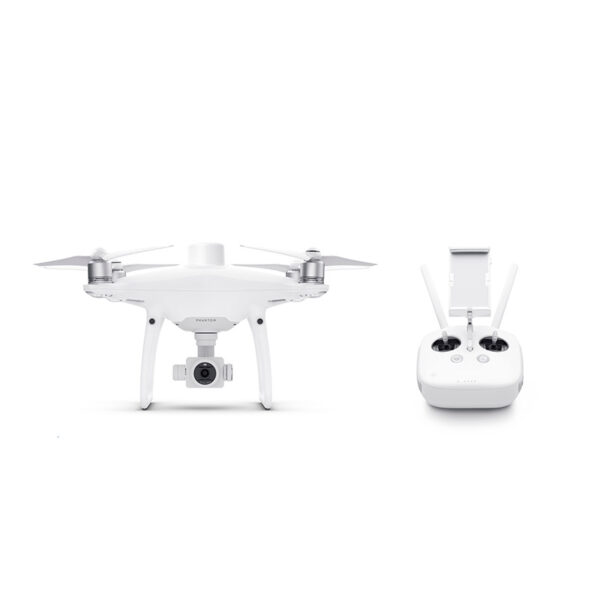

Phantom 4 RTK SDK Remote Controller Combo

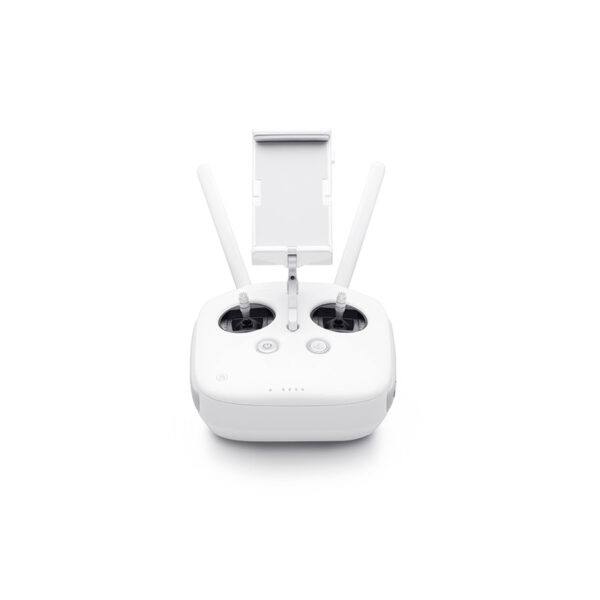

DJI Phantom 4 RTK SDK Remote Controller


This controller utilizes the DJI OcuSync transmission system to receive an HD-quality image and video feed from the Phantom 4 RTK from up to 4.4 miles away.

Phantom 4 RTK SDK Remote Controller x 1

SDK remote controller offers pilots access to the world’s leading drone app ecosystem for survey missions.

The use of commercial drones has increasingly become common practice for the survey industry. This comes as no surprise since drone mapping has proven to yield significant benefits when compared to traditional methods, with companies such as The Beck Group seeing a 25% reduction of rework across projects after using this technology.

As surveyors and large construction contractors have turned to DJI platforms as a new tool for collecting survey data, the open nature of software on DJI drone platforms has spawned a new generation of software providers producing compatible photogrammetry and automated mapping software.

To further enhance these developments, DJI is pleased to announce the Phantom 4 RTK SDK Remote Controller, which is Mobile SDK compatible – meaning, pilots with experience using 3rd party applications on DJI drones can now access the world’s leading drone app ecosystem for their Phantom 4 RTK with the SDK remote controller.

To harness the full power of the Phantom 4 RTK, users can connect a compatible Android or iOS device to the RC and install any compatible DJI Mobile SDK-enabled app. While developers have the ability to create their own custom apps through DJI Mobile SDK, operators can leverage these developer tools to optimize aircraft capability for surveying missions and other data acquisition scenarios.

In addition to providing access to the world’s largest app ecosystem, the SDK remote controller comes fully equipped with all the signature technologies that DJI users have come to know and expect, like DJI OcuSync, a transmission system that provides users with reliable HD image and video transmission at distances of up to 7 km.

As a leader in the commercial drone space, DJI is committed to helping businesses and organizations tackle today’s workplace challenges with reliable and powerful drone solutions. Surveyors and enterprises that are seeking new and efficient tools to help optimize their workflows, can look toward the DJI Phantom 4 RTK, offering real-time, centimeter-level positioning data to produce survey-grade results.

SDK Remote Controller
Operating Frequency :
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)

2.4 GHz
CE / MIC / KCC: < 20 dBm
5.8 GHz
FCC / SRRC / NCC: < 26 dBm

Max Transmission Distance
FCC / NCC: 4.3 mi (7 km);
CE / MIC / KCC / SRRC: 3.1 mi (5 km)
(Unobstructed, free of interference)

Built-in Battery: 6000 mAh LiPo 2S
Operating Current / Voltage: 1.2 A @ 7.4 V
Mobile Device Holder : Tablets and smartphones
Operating Temperature: 32° to 104° F (0° to 40° C)

Weight 1.225 lbs
Dimensions 7.08 × 4.13 × 8.46 in
