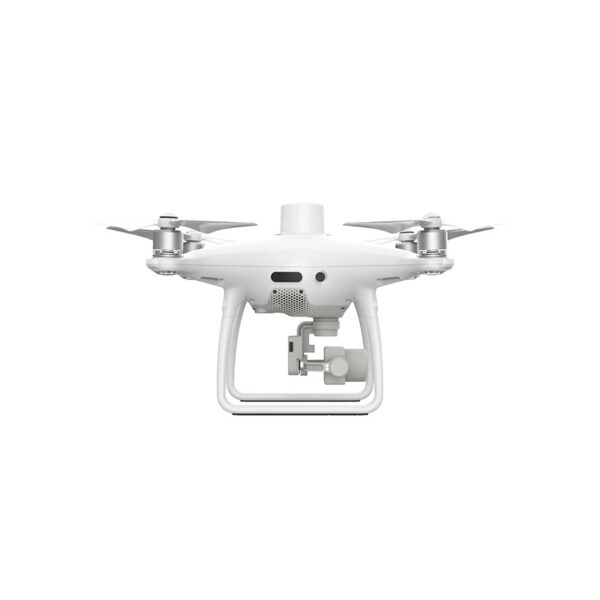

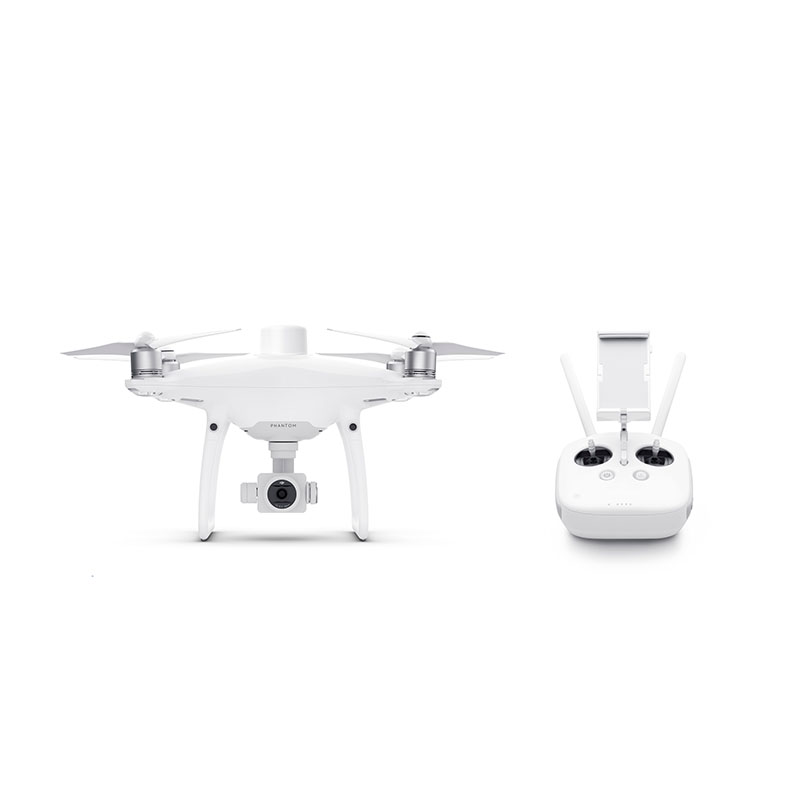

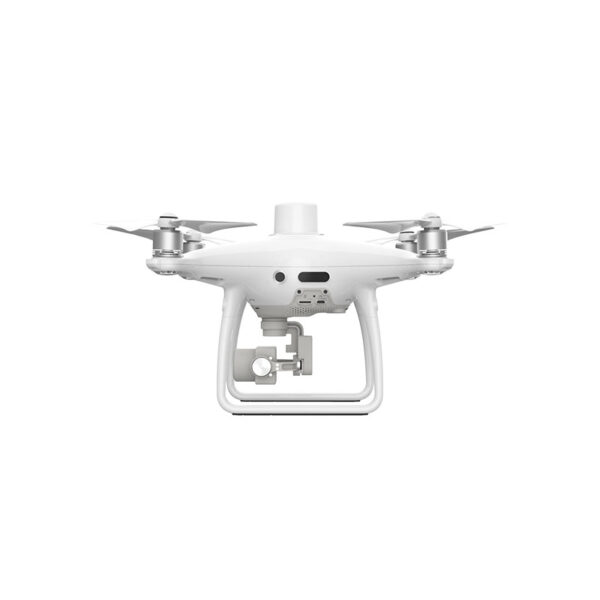

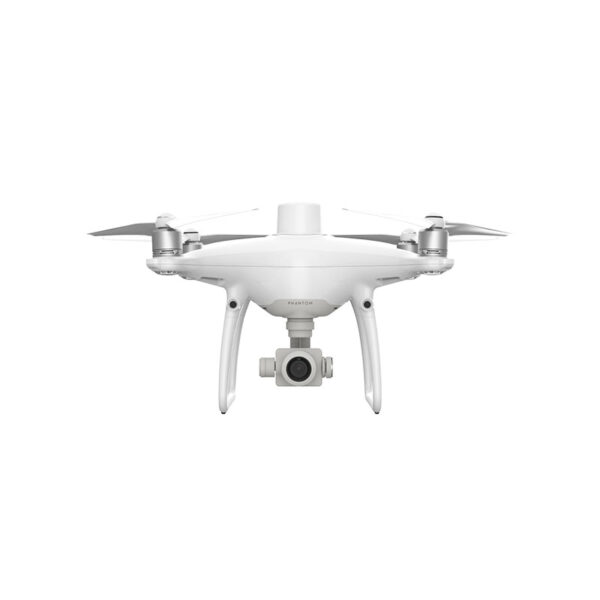

The Phantom 4 RTK Quadcopter from DJI is a Phantom 4 quadcopter that is designed to deliver centimeter-level accurate mapping that can be extremely useful for surveying, construction sites, and inspections. Utilizing an RTK receiver on the top of Phantom 4, the Phantom 4 RTK can achieve 1cm+1ppm RTK horizontal and 1.5cm+1ppm RTK vertical positioning accuracy.
In addition to the RTK receiver, the Phantom 4 RTK can achieve such accuracy thanks to DJI’s TimeSync system and the gimbal camera’s calibration process. The camera is the same one that’s on a standard Phantom 4, but with the Phantom 4 RTK, each camera has its radial and tangential lens distortions measured. They are added to the metadata of all captured images, allowing for accurate post-processing that account for the distortions.
The Phantom 4 RTK can perform mapping duties in real-time and When mapping, pilots can utilize the Photogrammetry and Waypoint Flight modes in the GS RTK app. This gives mapping-specific functionality, such as selecting flight paths and directly loading KML area files. Combine it all and you have an enterprise-level mapping solution that can be used right out of the box.
- Max flight time: 30 min
- Max transmission range: up to 4.34 miles (7 km)
- 20 MP 1-inch CMOS Sensor
- Built-in RTK module, support PPK
- Accurate positioning data with TimeSync
- Integrated flight planning with GS RTK app
- Complete mapping solution when used with DJI Terra
Aircraft
Takeoff Weight: 1391 g
Diagonal Distance: 350 mm
Max Service Ceiling Above Sea Level: 19685 ft (6000 m)
Max Ascent Speed: 6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed: 3 m/s
Max Speed:
31 mph (50 kph)(P-mode)
36 mph (58 kph)(A-mode)
Max Flight Time: Approx. 30 minutes
Operating Temperature Range: 32° to 104° F (0° to 40°C)
Operating Frequency
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (United States, China)
Transmission Power (EIRP)
2.4 GHz
CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
5.8 GHz
SRRC (China) / FCC (United States)/NCC (Taiwan,China): < 26 dBm
Hover Accuracy Range
RTK enabled and functioning properly:
Vertical: ±0.1 m; Horizontal: ±0.1 m
RTK disabled
Vertical: ±0.1 m (with vision positioning);
±0.5 m (with GNSS positioning)
Horizontal: ±0.3 m (with vision positioning);
±1.5 m (with GNSS positioning)
Image Position Offset:
The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body’s axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.
GNSS
Single-Frequency, High-Sensitivity GNSS Module:
GPS+BeiDou+Galileo (Asia);
GPS+GLONASS+Galileo (other regions)
Multi-Frequency Multi-System High-Precision RTK GNSS
Frequency Used:
GPS: L1/L2;
GLONASS: L1/L2;
BeiDou: B1/B2;
Galileo: E1/E5a
First-Fixed Time: < 50 s
Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS0
1 ppm means the error has a 1mm increase for every 1 km of movement from the aircraft.
Gimbal
Stabilization: 3-axis (tilt, roll, yaw)
Pitch: -90° to +30°
Max Controllable Angular Speed: 90°/s
Angular Vibration Range: ±0.02°
Infrared
Obstacle Sensing Range: 0.6-23 ft(0.2 – 7 m)
FOV:
70°(Horizontal)
±10°(Vertical)
Measuring Frequency: 10 Hz
Operating Environment: Surface with diffuse reflection material, and reflectivity > 8% (such as wall,trees, humans, etc.)
Mapping Functions
Mapping Accuracy **:
Mapping accuracy meets the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ
** The actual accuracy depends on surrounding lighting and patterns, aircraft altitude, mapping software used, and other factors when shooting.
Ground Sample Distance(GSD):
(H/36.5) cm/pixel,
H means the aircraft altitude relative to shooting scene (unit: m)
Data Acquisition Efficiency:
Max operating area of approx. 1 km² for a single flight(at an altitude of 182 m, i.e., GSD is approx. 5 cm/pixel, meeting the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class III
Vision System
Velocity Range: ≤31 mph(50 kph) at 6.6 ft(2 m) above ground with adequate lighting
Altitude Range: 0-33 ft(0 – 10 m)
Operating Range: 0-33 ft(0 – 10 m)
Obstacle Sensing Range: 2-98 ft(0.7-30 m)
FOV
Forward/Rear: 60° (horizontal), ±27° (vertical)
Downward: 70° (front and rear), 50° (left and right)
Measuring Frequency
Forward/Rear: 10 Hz;
Downward: 20 Hz
Operating Environment: Surfaces with clear patterns and adequate lighting(> 15 lux)
Camera
Sensor: 1” CMOS
Effective pixels: 20 M
Lens:
FOV 84°; 8.8 mm / 24 mm(35 mm format equivalent: 24 mm);
f/2.8 – f/11, auto focus at 1 m – ∞
ISO Range
Video:100-3200(Auto)
100-6400(Manual);
Photo:100-3200(Auto)
100-12800(Manual)
Mechanical Shutter Speed: 8 – 1/2000 s
Electronic Shutter Speed: 8 – 1/8000 s
Max Image Size:
4864×3648 (4:3);
5472×3648 (3:2)
Video Recording Modes: H.264, 4K: 3840×2160 30p
Photo Format: JPEG
Video Format: MOV
Supported File Systems:
FAT32 (≤ 32 GB);
exFAT (> 32 GB)
Supported SD Cards
MicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed≥15 MB/s
Operating Temperature Range: 32° to 104° F (-10° to 40°C)
Intelligent Flight Battery(PH4-5870mAh-15.2V)
Capacity: 5870 mAh
Voltage : 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Net Weight: 468 g
Charging Temperature Range: 14° to 104° F (-10° to 40°C)
Max charging Power: 160 W
Intelligent Battery Charging Hub(WCH2)
Input Voltage: 17.3 – 26.2 V
Output Voltage and Current: 8.7 V, 6 A; 5V, 2A
Operating Temperature: 41° to 104° F (5° to 40°C)
SDK Remote Controller
Operating Frequency :
2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)
EIRP:
2.4 GHz
CE / MIC / KCC: < 20 dBm
5.8 GHz
FCC / SRRC / NCC: < 26 dBm
Max Transmission Distance
FCC / NCC: 4.3 mi (7 km);
CE / MIC / KCC / SRRC: 3.1 mi (5 km)
(Unobstructed, free of interference)
Built-in Battery: 6000 mAh LiPo 2S
Operating Current / Voltage: 1.2 A @ 7.4 V
Mobile Device Holder : Tablets and smartphones
Operating Temperature: 32° to 104° F (0° to 40° C)
Remote Controller
Operating Frequency:
2.400 GHz-2.483 GHz(Europe,Japan,Korea)
5.725 GHz-5.850 GHz(United States, China)
Transmission Power (EIRP):
2.4 GHz
CE / MIC / KCC: < 20 dBm
5.8 GHz
SRRC / FCC: < 26 dBm
Max Transmission Distance
FCC: 4.3 mi(7 km);
SRRC / CE / MIC / KCC: 3.1 mi(5 km) (Unobstrcted, free of interference)
Power Consumption: 16 W(typical value)
Display:
5.5 inch screen, 1920×1080, 1000 cd/m², Android System
Memory 4G RAM+16G ROM
Operating Temperature Range: 32° to 104° F (0° to 40°C)
Intelligent Flight Battery Charging Hub(PHANTOM 4 CHARING HUB)
Voltage : 17.5 V
Operating Temperature Range: 41° to 104° F (5° to 40°C)
Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: LiPo 2S
Energy: 37.39 Wh
Operating Temperature: -4° to 104° F (-20° to 40°C)
AC Power Adapter(PH4C160)
Voltage : 17.4 V
Rated Power: 160 W
