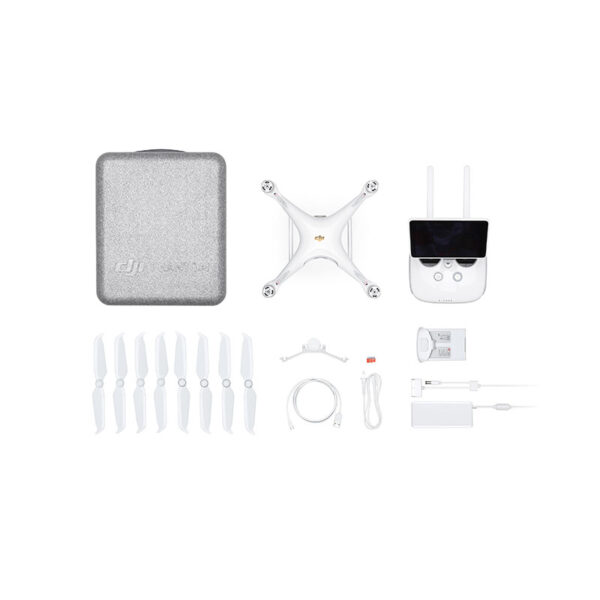

Aircraft × 1
Standard RC × 1
Intelligent Flight Battery × 1
Charger × 1
Power Cable × 1
Propellers (pair) × 4
Gimbal Clamp × 1
microSD Card (32GB) × 1
Micro USB Cable × 1
Carrying Case × 1
DJI Phantom 4 Pro V2.0
Featuring a 1-inch CMOS sensor that can shoot 4K/60fps videos and 20MP photos, the Phantom 4 Pro V2.0 grants filmmakers absolute creative freedom.
Featuring a 1-inch CMOS sensor that can shoot 4K/60fps videos and 20MP photos, the Phantom 4 Pro V2.0 grants filmmakers absolute creative freedom. The OcuSync 2.0 HD transmission system ensures stable connectivity and reliability, five directions of obstacle sensing ensures additional safety, and a dedicated remote controller with a built-in screen grants even greater precision and control. A wide array of intelligent features makes flying that much easier. The Phantom 4 Pro V2.0 is a complete aerial imaging solution, designed for the professional creator.
Aircraft
Weight (Battery & Propellers Included): 1375 g
Diagonal Size (Propellers Excluded): 350 mm
Max Ascent Speed
S-mode: 6 m/s
P-mode: 5 m/s
Max Descent Speed
S-mode: 4 m/s
P-mode: 3 m/s
Max Speed
S-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt Angle
S-mode: 42°
A-mode: 35°
P-mode: 25°
Max Angular Speed
S-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level: 19685 ft (6000 m)
Max Wind Speed Resistance: 10 m/s
Max Flight Time: Approx. 30 minutes
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Satellite Positioning Systems: GPS/GLONASS
Hover Accuracy Range
Vertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)
Gimbal
Stabilization: 3-axis (pitch, roll, yaw)
Controllable Range: Pitch: -90° to +30°
Max Controllable Angular Speed
Pitch: 90°/s
Angular Vibration Range: ±0.02°
Vision System
Vision System:
Forward Vision System
Backward Vision System
Downward Vision System
Velocity Range: ≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range: 0-33 ft (0-10 m)
Operating Range: 0-33 ft (0-10 m)
Obstacle Sensory Range: 2-98 ft (0.7-30 m)
FOV
Forward: 60° (Horizontal), ±27° (Vertical)
Backward: 60° (Horizontal), ±27° (Vertical)
Downward: 70° (Front and Rear), 50° (Left and Right)
Measuring Frequency
Forward: 10 Hz
Backward: 10 Hz
Downward: 20 Hz
Operating Environment: Surface with clear pattern and adequate lighting (lux>15)
Infrared Sensing System
Obstacle Sensory Range: 0.6-23 feet (0.2-7 m)
FOV: 70° (Horizontal), ±10° (Vertical)
Measuring Frequency: 10 Hz
Operating Environment: Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)
Camera
Sensor: 1-inch CMOS
Effective pixels: 20M
Lens: FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞
ISO Range
Video:
100-3200 (Auto)
100-6400 (Manual)
Photo:
100-3200 (Auto)
100-12800 (Manual)
Mechanical Shutter Speed: 8-1/2000 s
Electronic Shutter Speed: 8-1/8000 s
Image Size
3:2 Aspect Ratio: 5472×3648
4:3 Aspect Ratio: 4864×3648
16:9 Aspect Ratio: 5472×3078
PIV Image Size
4096×2160 (4096×2160 24/25/30/48/50p)
3840×2160 (3840×2160 24/25/30/48/50/60p)
2720×1530 (2720×1530 24/25/30/48/50/60p)
1920×1080 (1920×1080 24/25/30/48/50/60/120p)
1280×720 (1280×720 24/25/30/48/50/60/120p)
Still Photography Modes
Single Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording Modes
H.265
C4K: 4096×2160 24/25/30p @100Mbps
4K: 3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K: 2720×1530 48/50/60p @80Mbps
FHD: 1920×1080 24/25/30p @50Mbps
FHD: 1920×1080 48/50/60p @65Mbps
FHD: 1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD: 1280×720 48/50/60p @35Mbps
HD: 1280×720 120p @60Mbps
H.264
C4K: 4096×2160 24/25/30/48/50/60p @100Mbps
4K: 3840×2160 24/25/30/48/50/60p @100Mbps
2.7K: 2720×1530 24/25/30p @80Mbps
2.7K: 2720×1530 48/50/60p @100Mbps
FHD: 1920×1080 24/25/30p @60Mbps
FHD: 1920×1080 48/50/60 @80Mbps
FHD: 1920×1080 120p @100Mbps
HD: 1280×720 24/25/30p @30Mbps
HD: 1280×720 48/50/60p @45Mbps
HD: 1280×720 120p @80Mbps
Max Video Bitrate: 100 Mbps
Supported File Systems: FAT32 (≤32 GB); exFAT (>32 GB)
Photo: JPEG, DNG (RAW), JPEG + DNG
Video: MP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD Cards: microSD
Max Capacity: 128 GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Remote Controller
Operating Frequency: 2.400-2.483 GHz and 5.725-5.850 GHz
Max Transmission Distance
2.400-2.483 GHz, 5.725-5.850 GHz (Unobstructed, free of interference)
FCC: 10000 m
CE: 6000 m
SRRC: 6000 m
MIC: 6000 m
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Battery: 6000 mAh LiPo 2S
Transmitter Power (EIRP)
2.400-2.483 GHz
FCC: 26 dBm
CE: 20 dBm
SRRC: 20 dBm
MIC: 17 dBm
5.725-5.850 GHz
FCC: 26 dBm
CE: 14 dBm
SRRC: 20 dBm
MIC: –
Operating Current/Voltage: 1.2 A@7.4 V
Video Output Port
GL300K: HDMI
GL300L: USB
Mobile Device Holder
GL300K: Built-in display device (5.5-inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM)
GL300L: Tablets and smart phones
Charger
Voltage: 17.4 V
Rated Power: 100 W
Intelligent Flight Battery
Capacity: 5870 mAh
Voltage: 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Net Weight: 468 g
Charging Temperature Range: 41° to 104°F (5° to 40°C)
Max Charging Power: 160 W
App / Live View
Mobile App: DJI GO 4
Live View Working Frequency: 2.4 GHz ISM, 5.8 GHz ISM
Live View Quality: 720P @ 30fps, 1080P @ 30fps
Latency
Phantom 4 Pro V2.0: 220 ms (depending on conditions and mobile device)
Phantom 4 Pro+ V2.0: 160-180 ms
