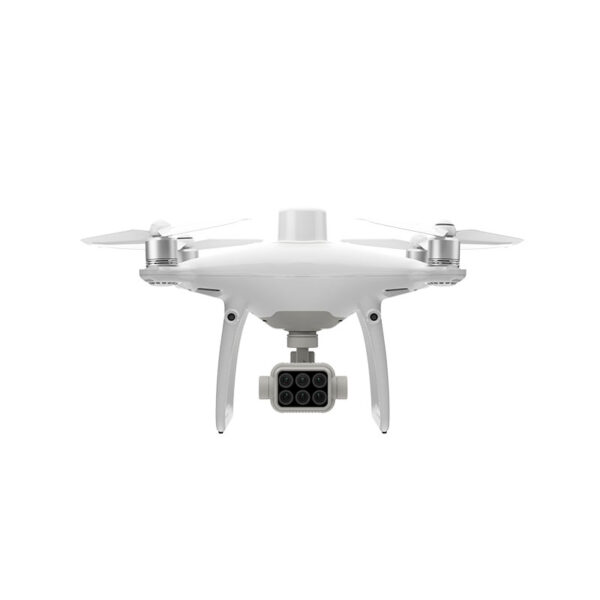

DJI (800x800) P4 Multispectral Front

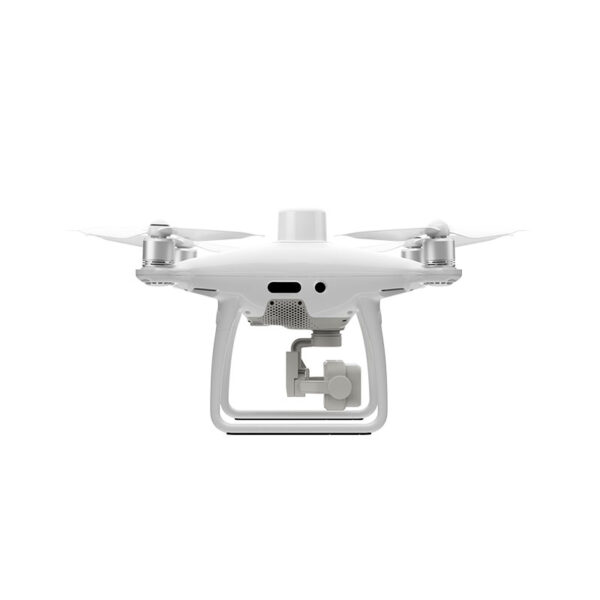

DJI (800x800) P4 Multispectral Right

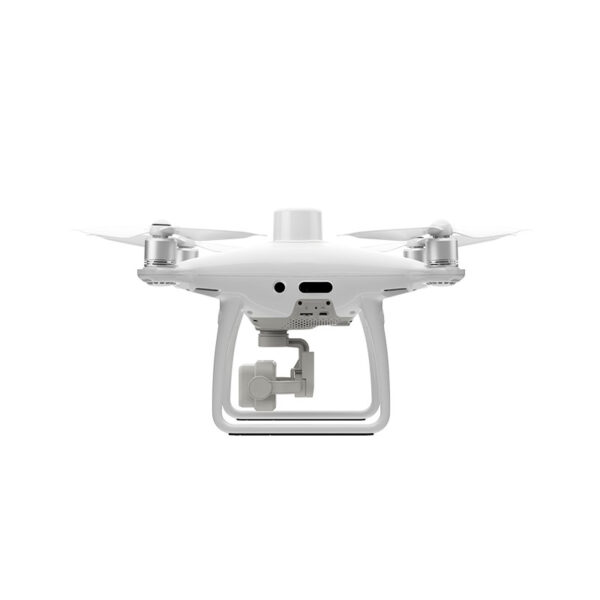

DJI (800x800) P4 Multispectral Left
DJI (800x800) P4 Multispectral Camera
DJI (800x800) P4 Multispectral Multi Camera Img

DJI P4 Multispectral

$6,499.00$9,100.00

Gather precise plant-level data using this high-precision drone with seamlessly integrated multispectral imaging system built for agriculture missions, environmental monitoring, and more.

Aircraft × 1
Standard RC × 1
Intelligent Flight Battery × 1
Charger × 1

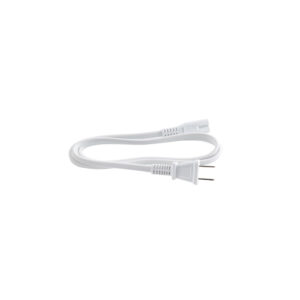

Power Cable × 1
Propellers (pair) × 4
Gimbal Clamp × 1
microSD Card (32GB) × 1
Micro USB Cable × 1
Carrying Case × 1

Included with D-RTK 2 High Precision GNSS Mobile Station Combo:
D-RTK 2 High Precision GNSS Mobile Station x 1
D-RTK 2 BASE STATION TRIPOD x 1

From agriculture to environmental research, the P4 Multispectral Agricultural Drone from DJI can be an invaluable tool in monitoring, understanding, and treating issues related to crop and vegetation health with information that’s invisible to the human eye. Utilizing a gimbal with a 6-camera array, this drone can see below the surface. One camera is an RGB camera dedicated to visible light and capturing standard photos, while the other five capture various other wavelengths.

The other five cameras capture 2MP images in red edge, near-infrared, green, red, and blue wavelengths. The global shutter and 3-axis stabilized gimbal help ensure the resulting images are clear, even while flying at higher speeds. While flying, you can switch between the two feeds to maximize data collection and focus on areas that need the most attention.

An integrated spectral sunlight sensor on the top of the P4 Multispectral quadcopter works in conjunction with the gimbal camera to achieve the most accurate NDVI results possible. The sensor captures solar irradiance to help increase accuracy and maintain consistency in processed data through different times of the day.

Aircraft
Takeoff Weight: 1487 g
Diagonal Distance (Propellers Excluded): 350 mm
Max Service Ceiling Above Sea Level: 19685 ft (6000 m)
Max Ascent Speed: 6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed: 3 m/s
Max Speed: 31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)
Max Flight Time: Approx. 27 minutes
Operating Temperature: 0° to 40° C (32° to 104° F)

Operating Frequency
2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)[1]

Transmission Power (EIRP):
2.4 GHz: < 20 dBm (CE / MIC / KCC)
5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Hover Accuracy Range
RTK enabled and functioning properly:
Vertical: ± 0.1 m; Horizontal: ± 0.1 m
RTK disabled:
Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning)
Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning)

Image Position Compensation:
The relative positions of the centers of the six cameras’ CMOS and the phase center of the onboard D-RTK antenna have been calibrated and are recorded in the EXIF data of each image.

Mapping Functions
Ground Sample Distance (GSD):
(H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m)

Rate of Data Collection:
Max operating area of approx. 0.63 km2 for a single flight at an altitude of 180 m, i.e., GSD is approx. 9.52 cm/pixel, with a forward overlap rate of 80% and a side overlap ratio of 60%, during a flight that drains the battery from 100% to 30%.

GNSS
Single-Frequency High-Sensitivity GNSS:
GPS + BeiDou + Galileo[2] (Asia); GPS + GLONASS + Galileo[2] (other regions)

Multi-Frequency Multi-System High-Precision RTK GNSS
Frequency Used
GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo[2]: E1/E5

First-Fixed Time: < 50 s
Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS).

1 ppm indicates error with a 1 mm increase over 1 km of movement.

Velocity Accuracy: 0.03 m/s

Gimbal
Controllable Range
Tilt: -90° to +30°

Vision System
Velocity Range: ≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting
Altitude Range: 0 – 33 ft (0 – 10 m)
Operating Range: 0 – 33 ft (0 – 10 m)
Obstacle Sensory Range: 2 – 98 ft (0.7 – 30 m)
Operating Environment: Surfaces with clear patterns and adequate lighting (> 15 lux)

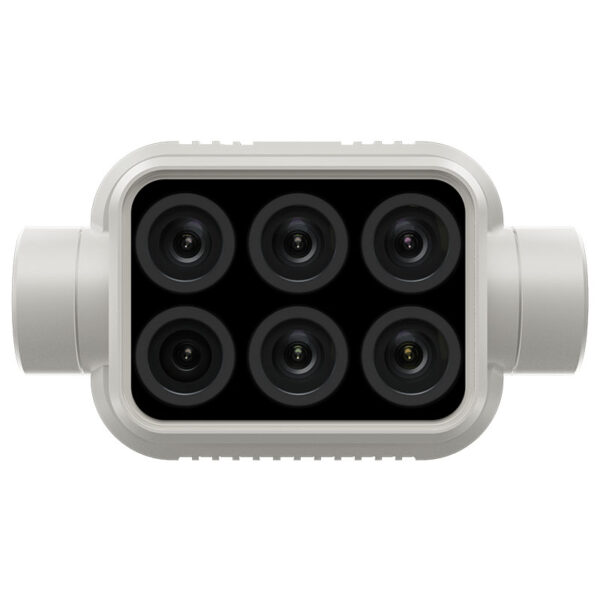

Camera
Sensors:
Six 1/2.9” CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging.

Each Sensor: Effective pixels 2.08 MP (2.12 MP in total)

Filters:
Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm; Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm

Lenses
FOV (Field of View): 62.7°
Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞
Aperture: f/2.2
RGB Sensor ISO Range: 200 – 800
Monochrome Sensor Gain: 1 – 8x
Electronic Global Shutter: 1/100 – 1/20000 s (visible light imaging); 1/100 – 1/10000 s (multispectral imaging)
Max Image Size: 1600×1300 (4:3.25)
Photo Format: JPEG (visible light imaging) + TIFF (multispectral imaging)
Supported File Systems: FAT32 (£ 32 GB); exFAT (> 32 GB)

Supported SD Cards:
microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-1 rating required
Operating Temperature: 0° to 40° C (32° to 104° F)

Remote Controller
Operating Frequency:
2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)[1]

Transmission Power (EIRP):
2.4 GHz: < 20 dBm (CE / MIC / KCC)
5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Max Transmission Distance:
FCC / NCC: 4.3 mi (7 km)
CE / MIC / KCC / SRRC: 3.1 mi (5 km)(Unobstructed, free of interference)

Built-in Battery: 6000 mAh LiPo 2S
Operating Current / Voltage: 1.2 A @ 7.4 V
Mobile Device Holder: Tablets and smartphones
Operating Temperature: 0° to 40° C (32° to 104° F)

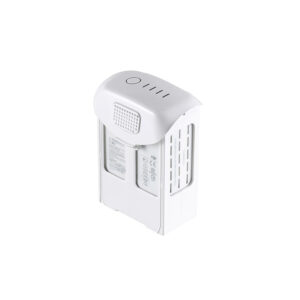

Intelligent Flight Battery (PH4-5870mAh-15.2V)
Capacity: 5870 mAh
Voltage: 15.2 V
Battery Type: LiPo 4S
Energy: 89.2 Wh
Net Weight: 468 g
Operating Temperature: -10° to 40° C (14° to 104° F)
Charging Temperature :5° to 40° C (41° to 104° F)
Max Charging Power: 160 W

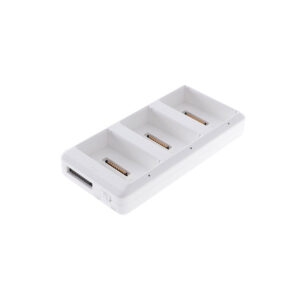

Intelligent Flight Battery Charging Hub (PHANTOM 4 CHARGING HUB)
Voltage: 17.5 V
Operating Temperature: 5° to 40° C (41° to 104° F)

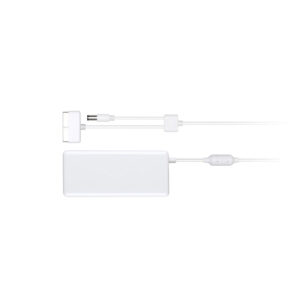

AC Power Adapter (PH4C160)
Voltage: 17.4 V

Rated Power: 160 W

NOTE
[1] To comply with local laws and regulations, this frequency is not available in some countries or regions.
[2] Support for Galileo is coming soon.

Weight 5.87 lbs
Dimensions 19.88 × 11.42 × 16.14 in
Versions

DJI P4 Multispectral, DJI P4 Multispectral + D-RTK 2 High Precision GNSS Mobile Station Combo
