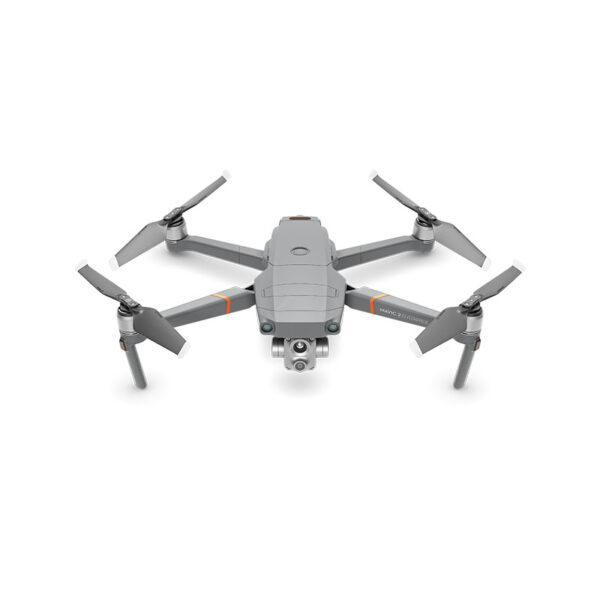

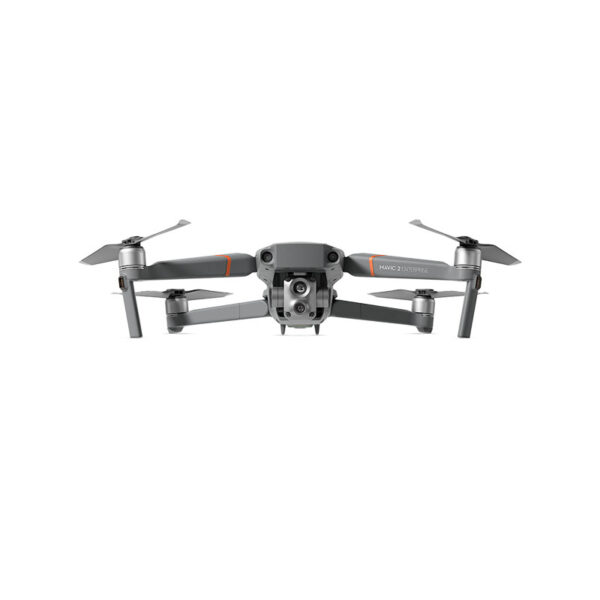

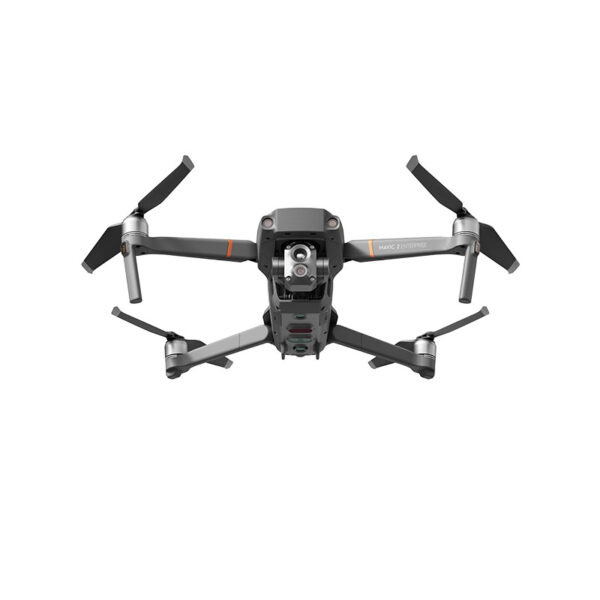

DJI Mavic 2 Enterprise Advanced

Aircraft
Takeoff Weight (Without Accessories): 909g
Max Takeoff Weight: 1100g

Dimensions (L×W×H)

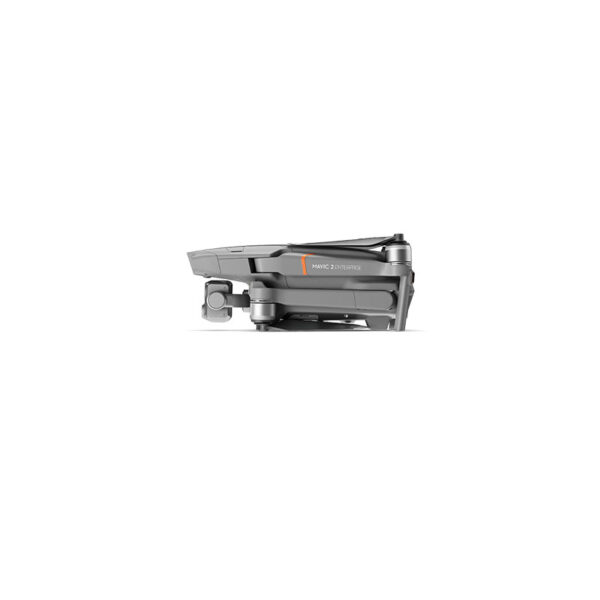

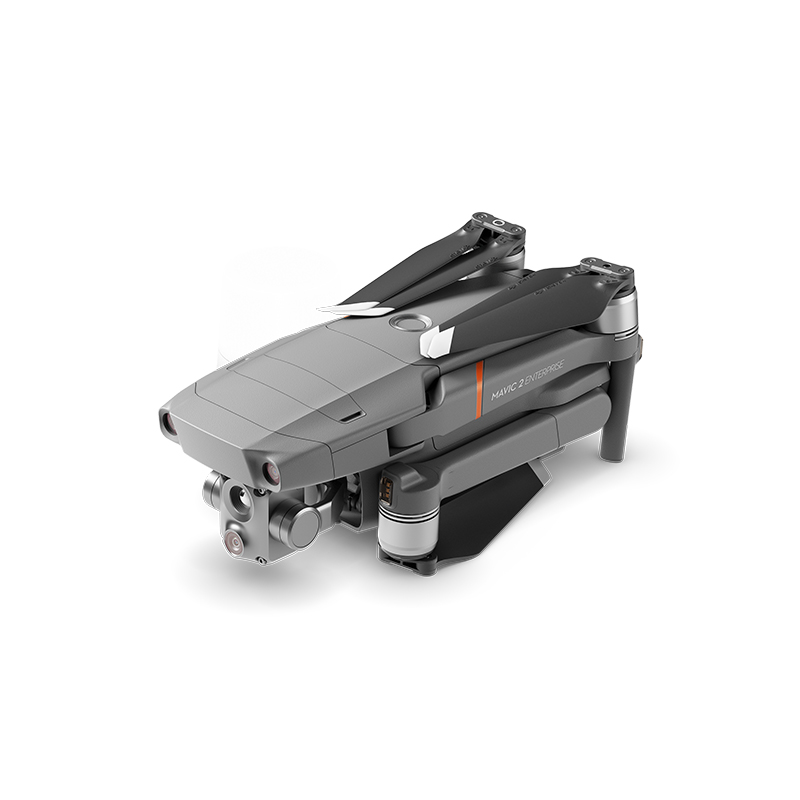

Folded: 214×91×84mm

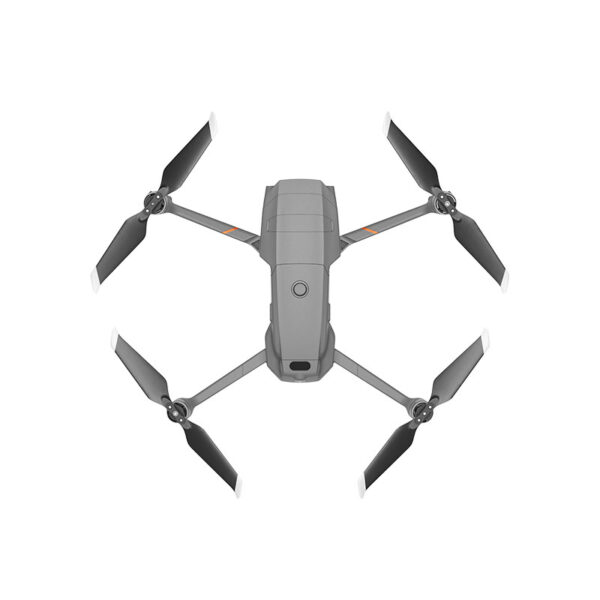

Unfolded: 322×242×84mm
Unfolded+Spotlight: 322×242×114mm
Unfolded+Beacon: 322×242×101mm
Unfolded+Speaker: 322×242×140mm
Unfolded+RTK Module: 322x242x125mm
Diagonal Distance: 354 mm

Max Ascent Speed:
6 m/s (S-mode)
5 m/s (P-mode)
4 m/s (S-mode with accessories)
4 m/s (P-mode with accessories)

Max Descent Speed:
Descend Vertically
5 m/s (S-mode)
4 m/s (P-mode)

Tilt
7 m/s (S-mode)
4 m/s (P-mode)

Max Speed:
72 kph (S-mode, without wind)
50 kph (P-mode, without wind)

Max Service Ceiling Above Sea Level: 6000 m

Max Flight Time:
31 min (measured while flying at 25 kph in windless conditions)
28 min (RTK module attached)
29 min (with beacon turned on)
30 min (with beacon turned off)
24 min (with spotlight turned on)
28 min (with spotlight turned off)
27 min (with speaker turned on)
28 min (with speaker turned off)

Max Wind Speed Resistance: 10 m/s (scale 5)

Max Tilt Angle:
35°(S-mode, with remote controller)
25°(P-mode)

Max Angular Velocity:
200°/s (S-mode)
100°/s (P-mode)

Operating Temperature: -10° to 40° C

GNSS: GPS+GLONASS

Hovering Accuracy Range
Vertical:
± 0.1 m (with RTK)
± 0.1 m (with Vision Positioning)
± 0.5 m (with GPS Positioning)
Horizontal:
± 0.1 m (with RTK)
± 0.3 m (with Vision Positioning)
± 1.5 m (with GPS Positioning)

Operating Frequency:
2.400-2.4835 GHz;
5.725-5.850 GHz

Transmitter Power (EIRP):
2.400 – 2.4835 GHz
FCC: ≤26 dBm;
CE: ≤20 dBm;
SRRC: ≤20 dBm;
MIC: ≤20 dBm

5.725 – 5.850 GHz
FCC: ≤26 dBm;
CE: ≤14 dBm;
SRRC: ≤26 dBm

Internal Storage: 24 GB

M2EA Thermal Camera
Sensor: Uncooled VOx Microbolometer
Focal Length: Approx. 9mm
35 mm format equivalent: Approx. 38mm
Sensor Resolution: 640×512 @30Hz
Accuracy of Thermal Temperature:
Measurement: ±2°C or ±2%, whichever is greater.
Scene Range:
-40 °C to 150 °C (High Gain)
-40 °C to 550 °C (Low Gain)
Digital Zoom: 16 ×
Pixel Pitch: 12 μm
Spectral Band: 8-14 μm
Photo Format: R-JPEG
Video Format: MP4
Metering Method: Spot Meter, Area Measurement
FFC: Auto/Manual

M2EA Visual Camera
Sensor: 1/2” CMOS, Effective Pixels: 48 M
Lens:
FOV: 84°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO Range:
Video: 100-12800 (auto)
Photos: 100-1600 (auto)
Digital Zoom: 32×
Max Image Size: 8000×6000
Still Photography Modes:
Single shot Interval: 2/3/5/7/10/15/20/30/60 s
Panorama: Sphere
Video Resolution:
3840×2160@30fps
1920×1080@30fps
Photo Format: JPEG
Video Format: MP4

Gimbal
Mechanical Range:
Tilt: -135°- +45°
Pan: -100°- +100°
Controllable Range:
Tilt: -90°- +30°
Pan: -75°- +75°
Stabilization: 3-axis (tilt, roll, pan)
Max control speed: 120°/s
Angular Vibration Range: ±0.005°

Sensing System
Sensing System: Omnidirectional Obstacle Sensing[2]

Forward
Precision Measurement Range: 0.5 – 20 m
Detectable Range: 20 – 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°

Backward
Precision Measurement Range: 0.5 – 16 m
Detectable Range: 16 – 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°

Upward
Precision Measurement Range: 0.1-8 m
Downward
Precision Measurement Range: 0.5 -11m
Detectable Range: 11-22 m

Sides
Precision Measurement Range: 0.5 – 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°

Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting
(lux > 15)

Upward: Detects diffuse reflective surfaces(>20%)
(walls, trees, people, etc.)

Downward: Surface with clear pattern and adequate lighting
(lux > 15)Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

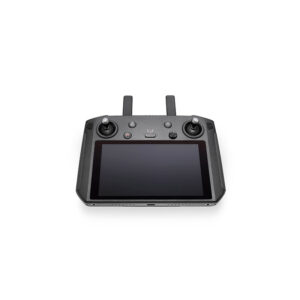

Remote Controller
Operating Frequency:
2.400 – 2.483 GHz;
5.725 – 5.850 GHz

Max Transmission Distance (unobstructed, free of interference)

2.400 – 2.483 GHz; 5.725 – 5.850 GHz
FCC: 10000m
CE: 6000m
SRRC: 6000m
MIC: 6000m

Transmission Power (EIRP):

2.400-2.4835 GHz:
25.5 dBm (FCC); 18.5 dBm (CE) 19 dBm (SRRC); 18.5 dBm (MIC)

5.725-5.850 GHz:
25.5 dBm (FCC); 12.5 dBm (CE) 18.5 dBm (SRRC)

Storage: ROM 16GB + microSD Extensible Storage
Video Output Port: HDMI Port

Built-in Battery
Type: 18650 Li-Po (5000 mAh @ 7.2 V)
Charging Mode: Charged with USB charger at 12V/2A
Rated Power 15 W
Charging time: 2 hr (with a USB charger at 12V/2A)
Operating Current/Voltage: 1800mA = 3.83V
Battery Life: Built-in Battery Approx. 2.5 hr
Operating Temperature: -20° C – 40° C

RC Size
Folded without Joystick: 177.5 x 121.3 x 40 mm
Unfolded with Joystick: 177.5 x 181 x 60 mm
Weight: Approx. 630 g

Intelligent Flight Battery
Main Link: 17.6V = 3.41A or 17.0V = 3.53A
USB: 5.0 V = 2.0 A

Intelligent Flight Battery
Capacity: 3850 mAh
Voltage: 15.4V
Max Charging Voltage: 17.6V
Battery Type: LiPo
Energy: 59.29 Wh
Net Weight: 297g
Charging Temperature 5°C – 40°C
Operating Temperature Range: -10°C – 40°C
Heating Methods: Manual Heating, Auto Heating
Heating Temperature: -20°C – 6°C
Heating duration: 500s (Max)
Heating Power: 55W (Max)
Charging Time: 90 mins
Max Charging Power: 80W

RTK Module
Dimensions: 69 mm x 69 mm x 59mm
Connections: Micro USB Port
RTK Positioning Precision
In RTK FIX
1cm+1ppm (Horizontal)
1.5cm+1 ppm (Vertical)

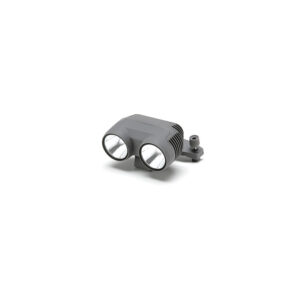

M2EA Spotlight
Dimensions: 68×60×41mm
Connections: Micro USB Port
Operating Range: 30 m
Power: Max 26W
Illuminance: FOV17°, Max: 11lux @ 30m Straight

M2EA Beacon
Dimensions: 68mm×40mm×27.8mm
Connections: Micro USB Port
Power: Avg. 1.6W
Controllable Range: 5000 m
Light intensity
Min Angle: 55 cd;
Light intensity: 157cd

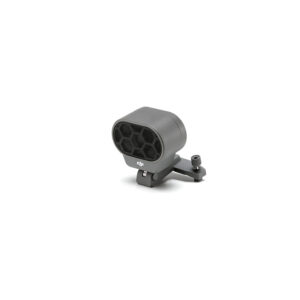

M2EA Speaker
Dimensions: 68×55×65 mm
Connections: Micro USB Port
Power: Max 10W
Decibel: 100 db @ 1 meter distance
Max Bitrate: 16kbps

SD Cards
Supported SD Cards:
Micro SD™
Supports a microSD with capacity of up to 128 GB.
A UHS-I Speed Grade 3 rating microSD card is required.

APP / Live View
Video Transmission System: OcuSync 2.0
Mobile App: DJI PILOT(Android Version)
Live View Quality
Remote Controller:
720p@30fps / 1080p@30fps
Max Live View Bitrate: 40Mbps
Latency: 120 – 130 ms
Required Operating System: ios 10.0 or later Android 5.0 or later

Others
Footnotes
[1] The accuracy of the temperature measurement is measured at a distance of 5m against a blackbody with an emissivity of 0.95 under ideal conditions. The actual accuracy is also affected by various environmental factors such as temperature and humidity, and needs to be corrected by post-processing software. Under ideal conditions, the temperature accuracy can reach ±2°C or ±2%, whichever is greater.
[2] Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
