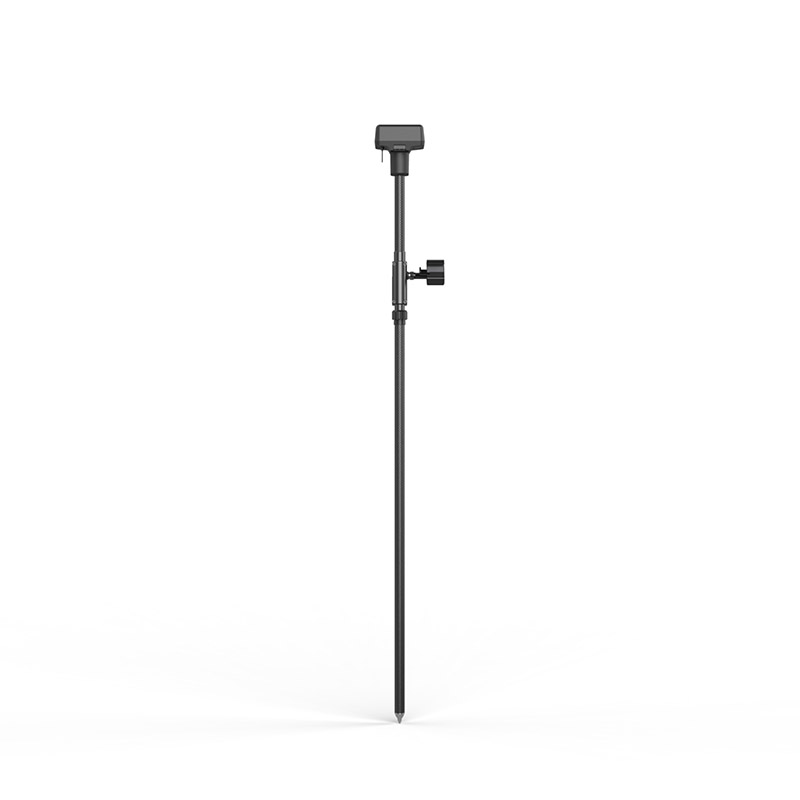

D-RTK 2 High Precision GNSS Mobile Station

$3,600.00

Supports all major global satellite navigation systems and provides real-time differential corrections to deliver improved relative accuracy with centimeter-level precision positioning data.

Availability: 2 in stock

D-RTK 2 Body × 1
Extension Rod × 1
Charging Hub × 1
AC Power Adapter × 1
Intelligent Battery (WB37) × 2
Battery Cover × 1
AC Power Cable × 1
USB-C Cable × 1
USB-C OTG Cable × 1
Hex Key × 1

Supports all major global satellite navigation systems and provides real-time differential corrections to deliver improved relative accuracy with centimeter-level precision positioning data.

  • Supports: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
  • Connect multiple drones to conduct coordinated operations
  • IP65 Ingress Protection

Simultaneously receives: GPS: L1 C/A, L2, L5; BEIDOU: B1, B2, B3; GLONASS: F1, F2; Galileo: E1, E5A, E5B
Positioning Accuracy:
Single Point
Horizontal: 1.5 m(RMS)
Vertical: 3.0 m(RMS)
RTK
Horizontal: 1 cm+ 1 ppm(RMS)
Vertical: 2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Ingress Protection Rating: IP65
Operating Temperature: -20° to 55° C (4° to 131° F )

Weight 5.5 lbs
Dimensions 54.72 × 7.48 × 8.93 in
