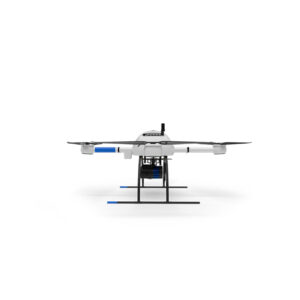

Microdrones mdLiDAR1000LR Low Right
Microdrones mdLiDAR1000LR Low Left

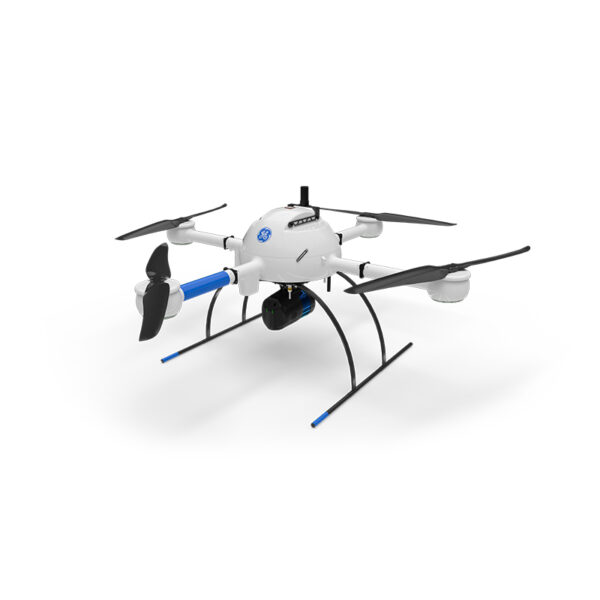

Microdrones mdLiDAR1000LR High Right
Microdrones mdLiDAR1000LR High Left
Microdrones mdLiDAR1000LR Detail
Microdrones mdLiDAR1000LR Payload High Front
Microdrones mdLiDAR1000LR Payload High Back
Microdrones mdLiDAR1000LR Payload Low Right
Microdrones mdLiDAR1000LR Payload Low Left
Microdrones mdLiDAR1000LR Payload High Right
Microdrones mdLiDAR1000LR Payload High Left

Microdrones mdLiDAR1000LR

$69,900.00

mdLiDAR1000LR is a fully integrated system for producing 3D point clouds optimized for land surveying, construction, oil & gas and mining applications.

Request a Quote

Name(Required)
This field is for validation purposes and should be left unchanged.

md4-1000 Aircraft x 1
Charger x 1
Flight Battery x 1
Carrying Case x 1
LED Light Rings
Integrated Cooling Covers
Mag-less Navigation
Encrypted Digital Data Link
mdRC Remote Controller x 1
Extended Communication Range Operation
Multiple Tablet Control
Remote ID Enabled
Fully Integrated LiDAR & Camera Payload x 1
Applanix APX-15 UAV DG
mdCockpit Tablet Software
Tap & Fly

LONGER RANGE LiDAR & 26MP CAMERA ALL IN ONE, TO COVER MORE GROUND
LR means longer range. You’ll cover more ground from above. This translates to more efficiency than ever – the survey equipment, software, workflow, training and support that you need to be productive in the field.

  • Simple mission planning using mdCockpit
  • User selects flying height, drone speed and LiDAR strip overlap
  • Fully automated mission execution, realtime monitoring, and flight control using mdCockpit
  • Thorough georeferencing data processing using the Applanix APX-15 UAV DG and mdInfinity Software
  • Automated final point cloud processing using mdInfinity processing software
  • Final point cloud in standard ASPRS LAS format, View your deliverable in mdInfinity software, or export to use within any GIS or CAD software environment that you currently use.

LiDAR + mdaaS + EASY TO USE mdInfinity SOFTWARE = EXTREME GEOSPATIAL PRODUCTIVITY, NOW IN HIGH RESOLUTION

Microdrones has developed an end-to-end LiDAR solution combining a drone, a LiDAR payload, a fully integrated LiDAR processing and photogrammetry software workflow, and world class support to consistently provide quality deliverables.

mdLiDAR1000LR is a fully integrated system for producing 3D point clouds optimized for land surveying, construction, oil & gas and mining applications.

Improved image acquisition precisely configured to match the laser scanner field of view enables compatibility with streamlined point cloud colorization and FORMap data processing modules within the mdInfinity platform.

Each LiDAR channel of the mdLiDAR1000LR is boresight calibrated to improve the data consistency, therefore providing a reduced Standard Measurement Uncertainty.

WHO SHOULD CONSIDER THIS SYSTEM:

Professionals responsible for geospatial data collection should consider mdLiDAR1000LR to support the following tasks:

  • Digital Twin Creation and Maintenance
  • Corridor mapping
  • Mining (volume calculation)
  • Construction site monitoring
  • Environmental changes (time series)
  • Forestry
  • Contour mapping
  • Planning, Leveling, Excavation
  • Archaeology and cultural heritage
  • Highway construction
  • Precision Agriculture

SOLUTION COMPONENTS:
Platform: md4-1000

Payload:
LiDAR Sensor: Velodyne Ultra-PUCK VLP-32
Camera Sensor: Microdrones CMOS APS-C 26MP (23.5mmx15.6mm)
Georeferencing: APX-15 UAV

Software:
mdCockpit
mdInfinity

TECHNICAL SPECIFICATIONS:
Takeoff Weight (TOW): 6400g
System Operation Temperature:
-10 °C to 40 °C
14 °F to 104 °F
System Accuracy: LiDAR Pointcloud 4cm RMSE
Photogrammetry
Horizontal: 2 – 3 pixels
Vertical: : 3 – 5 pixels

Weight 110 lbs
Dimensions 48 × 40 × 42 in
